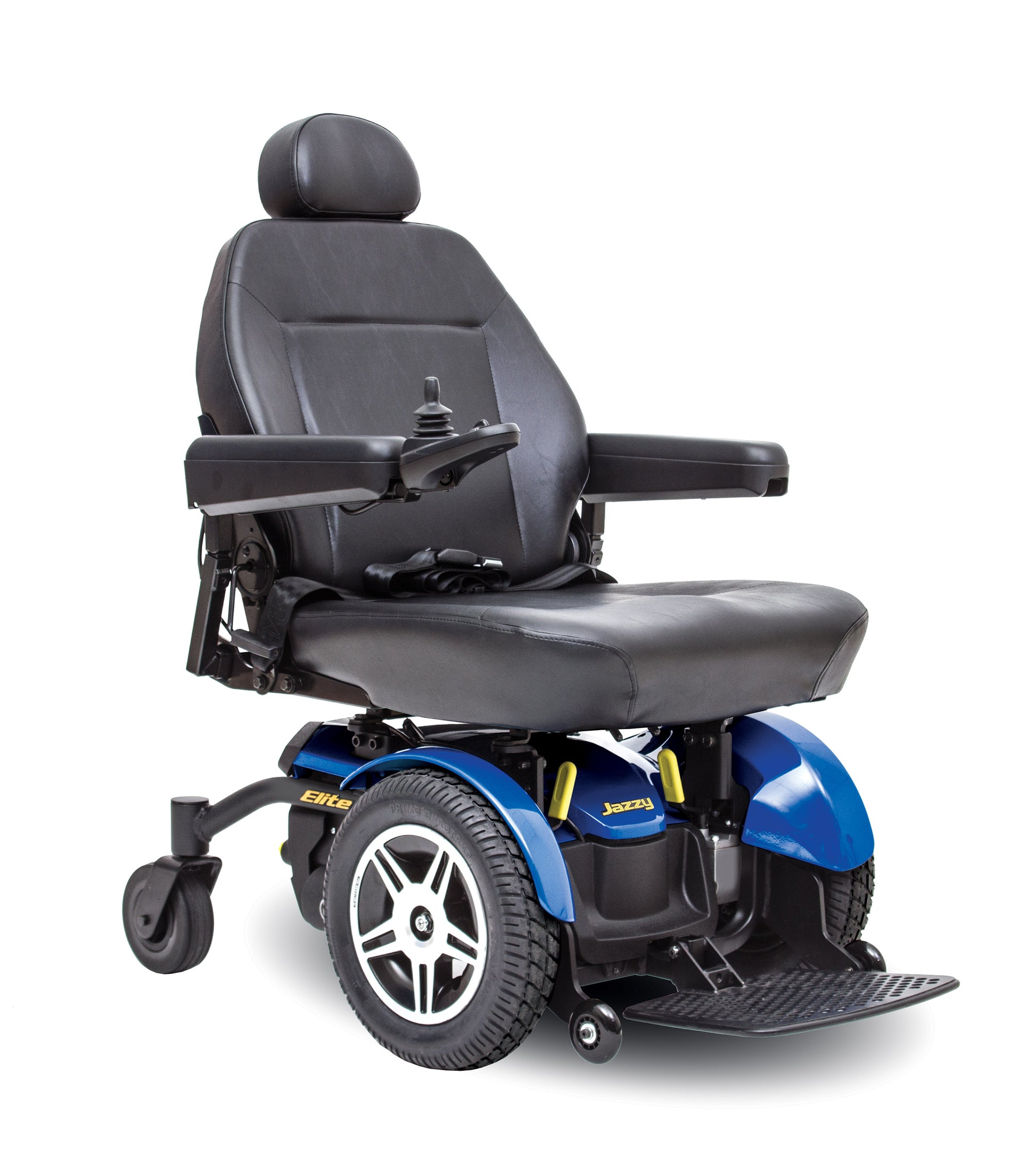

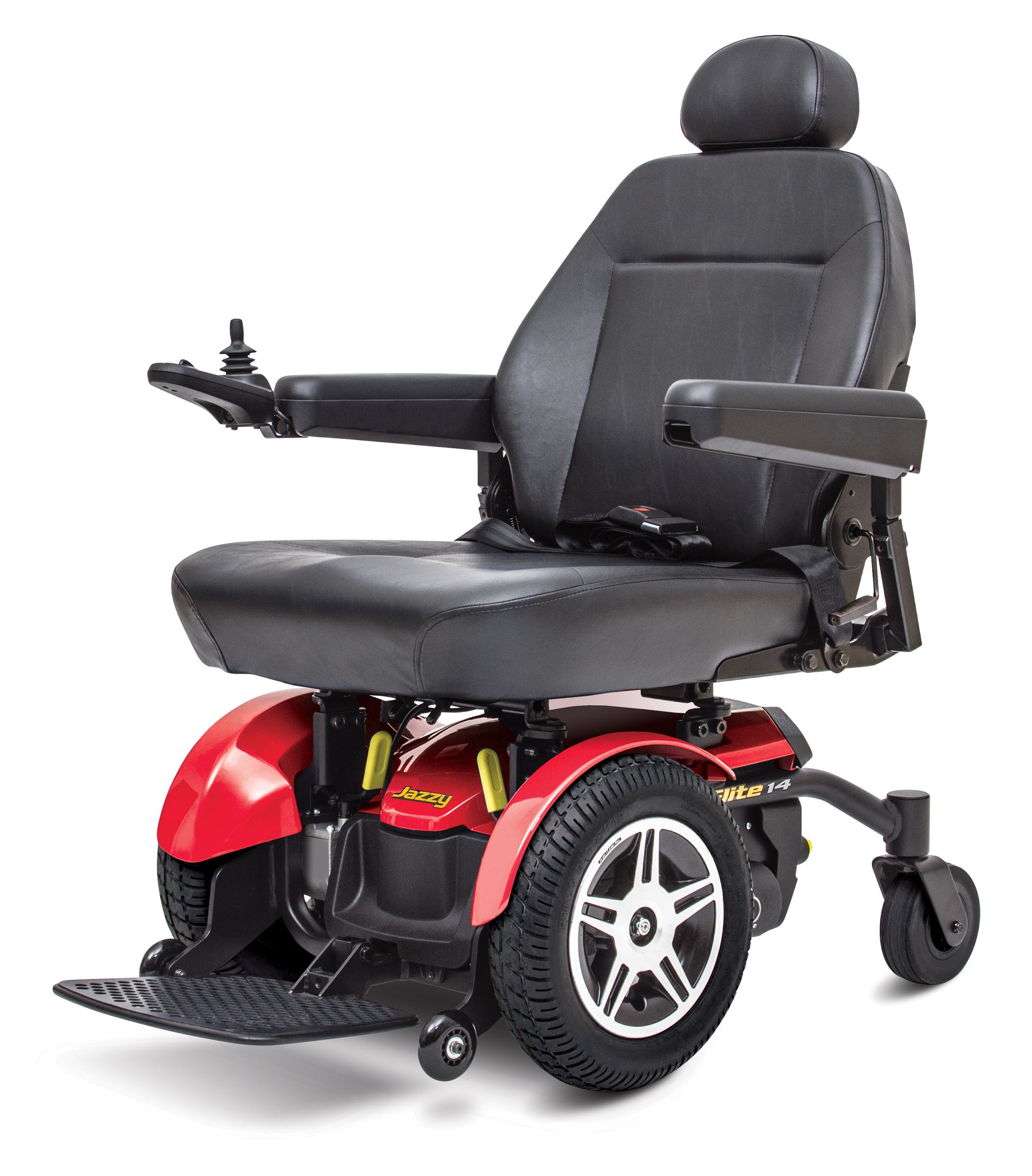

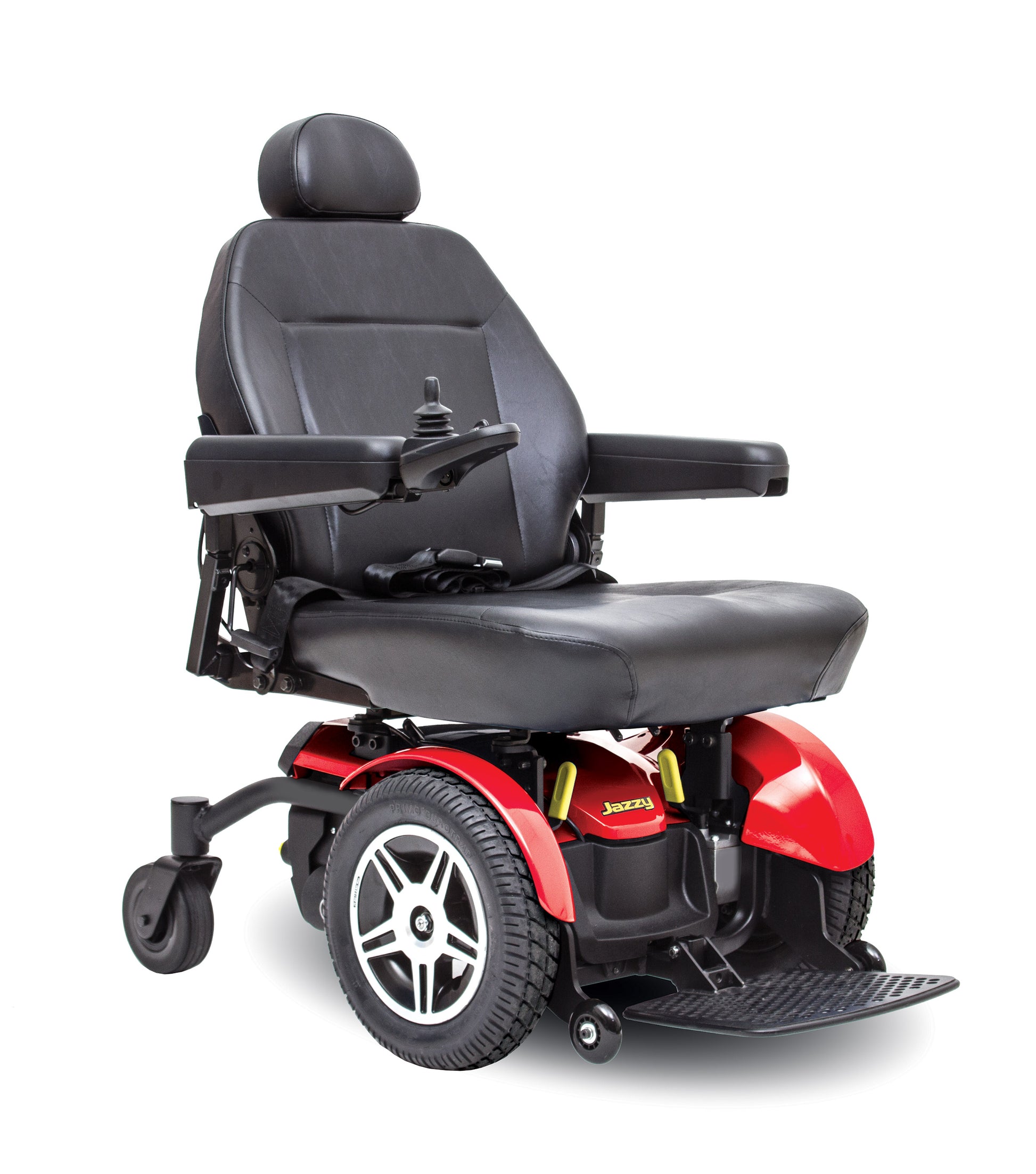

The Jazzy® Elite 14 is designed for excellent indoor maneuverability and outstanding outdoor capability.
The Jazzy Elite 14 features 14” drive wheels for enhanced outdoor performance combined with a front-wheel drive design to provide tight turns around corners.
Large front wheels offer extra absorption over obstacles for superb climbing capabilities along with front anti-tip wheels for transitioning over grade changes and handling various terrains with ease.
Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
| Model | Jazzy Elite 14 |
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24" |
| Width1 | 24.25" |
| Length1,2 | 35.5" |
| Maximum Speed3 | Up to 4 mph |
| Ground Clearance1 | 3" |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 14" |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two-motor, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 20"W x 20"D |
| High-Back Seat-to-Floor Range | 20" - 22" |
| Specialty Seating (max. size) | 20"W x 20"D |
| Specialty Seat-to-Floor Range | 16.25" - 18.25" |
| Synergy® Seating | 20"W x 20"D |
| Synergy® Seat-to-Floor Range | 15.75" - 17.75" |
| Standard Electronics | 50A, Dynamic Shark |
| Battery Size (2 required) | 12 volt, NF-22 |
| Standard Battery Charger | 5A, off-board |
| Per-Charge Range3,11 | Up to 9.8 miles |
| Battery Weight9 | 37 lbs. each |
| Weight of Heaviest Piece5 | 98.5 lbs |
| Standard Seat Weight | 51.5 lbs. (high-back) |
| Standard Seat Size | 20"x18-20" |
| Medicare Code Coverage | Group 2: Standard (K0822/K0823) |
| Warranty | 5-year limited warranty on frame; 13-month limited warranty on electronics; 13-month limited warranty on drive motors |
| Notes: 1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. 2 Without front riggings. 3 Varies with user weight, terrain, battery type, battery condition and tire pressure. 5 Does not include seat or battery weights. 9 Battery weight may vary based on manufacturer. 11 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. |
|
5-year limited warranty on frame;
13-month limited warranty on electronics;
13-month limited warranty on drive motors
