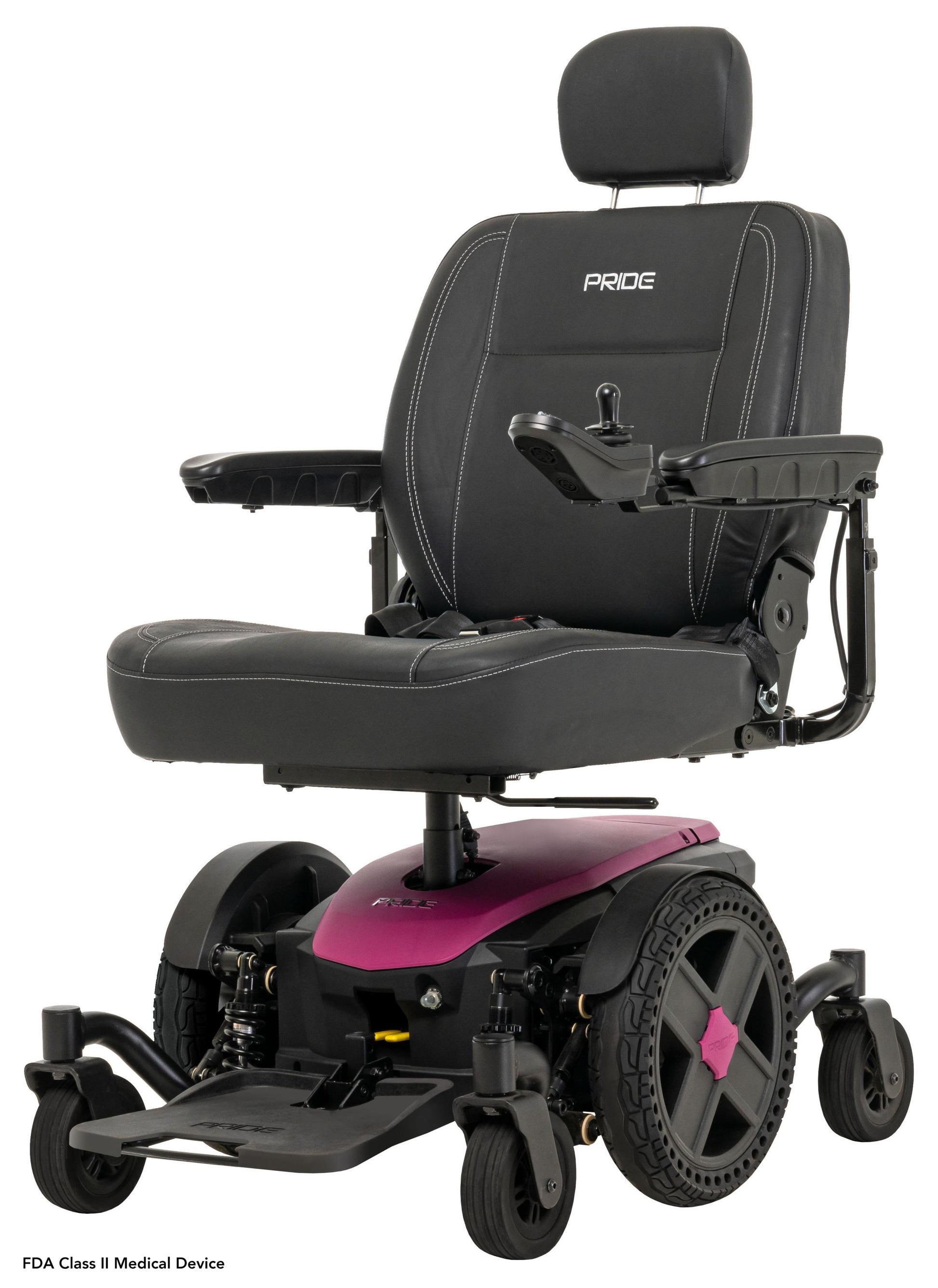

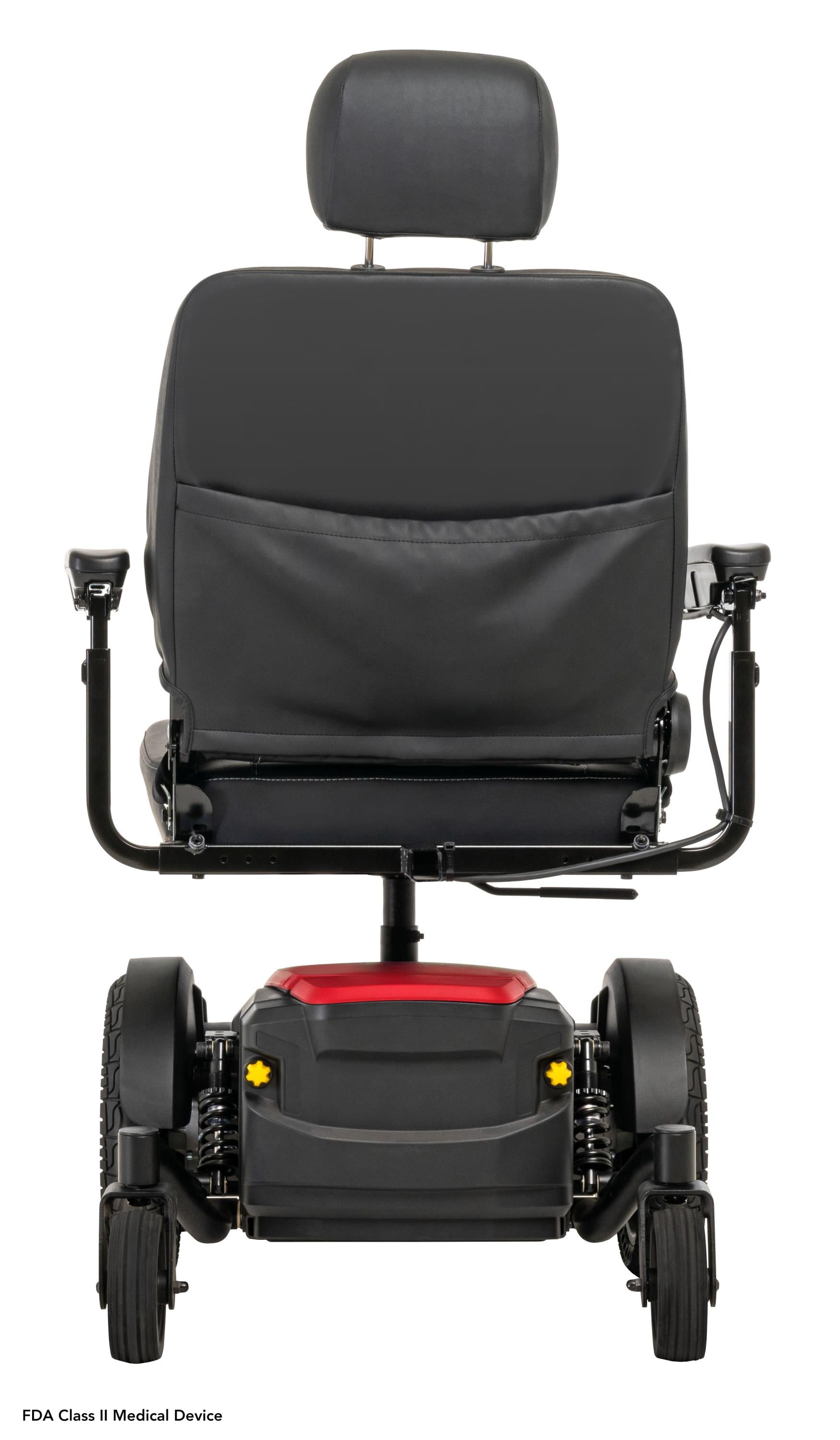

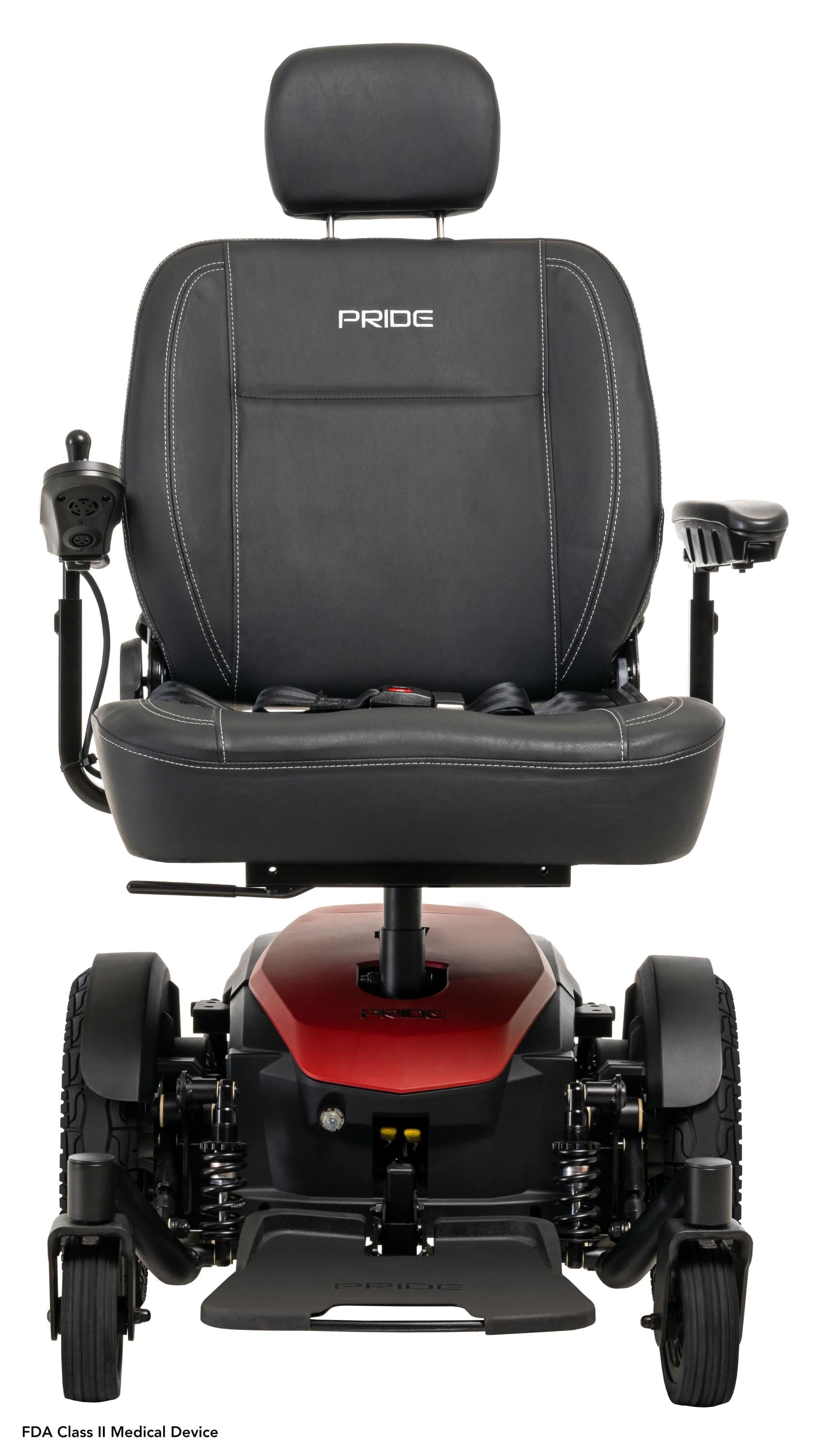

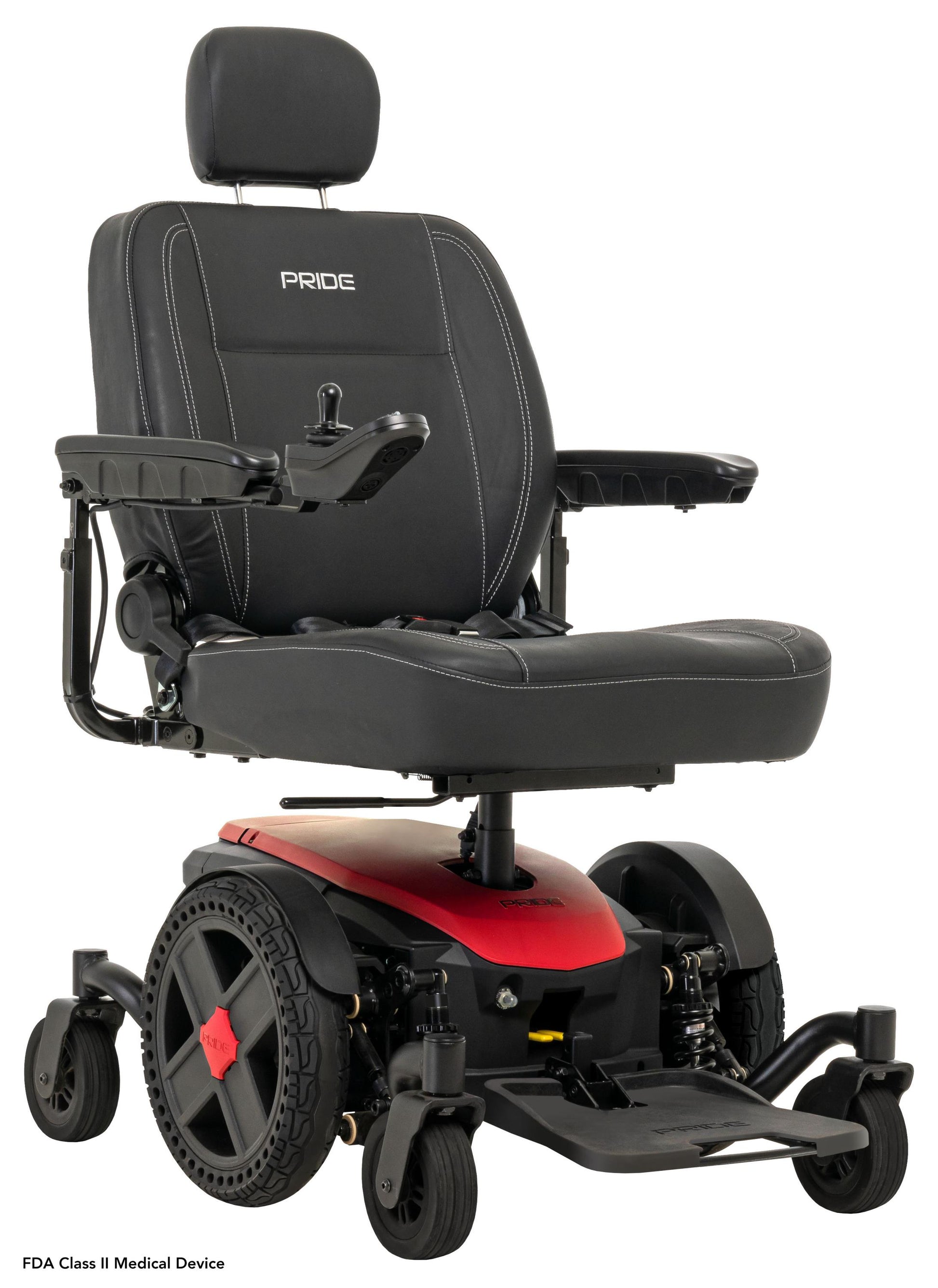

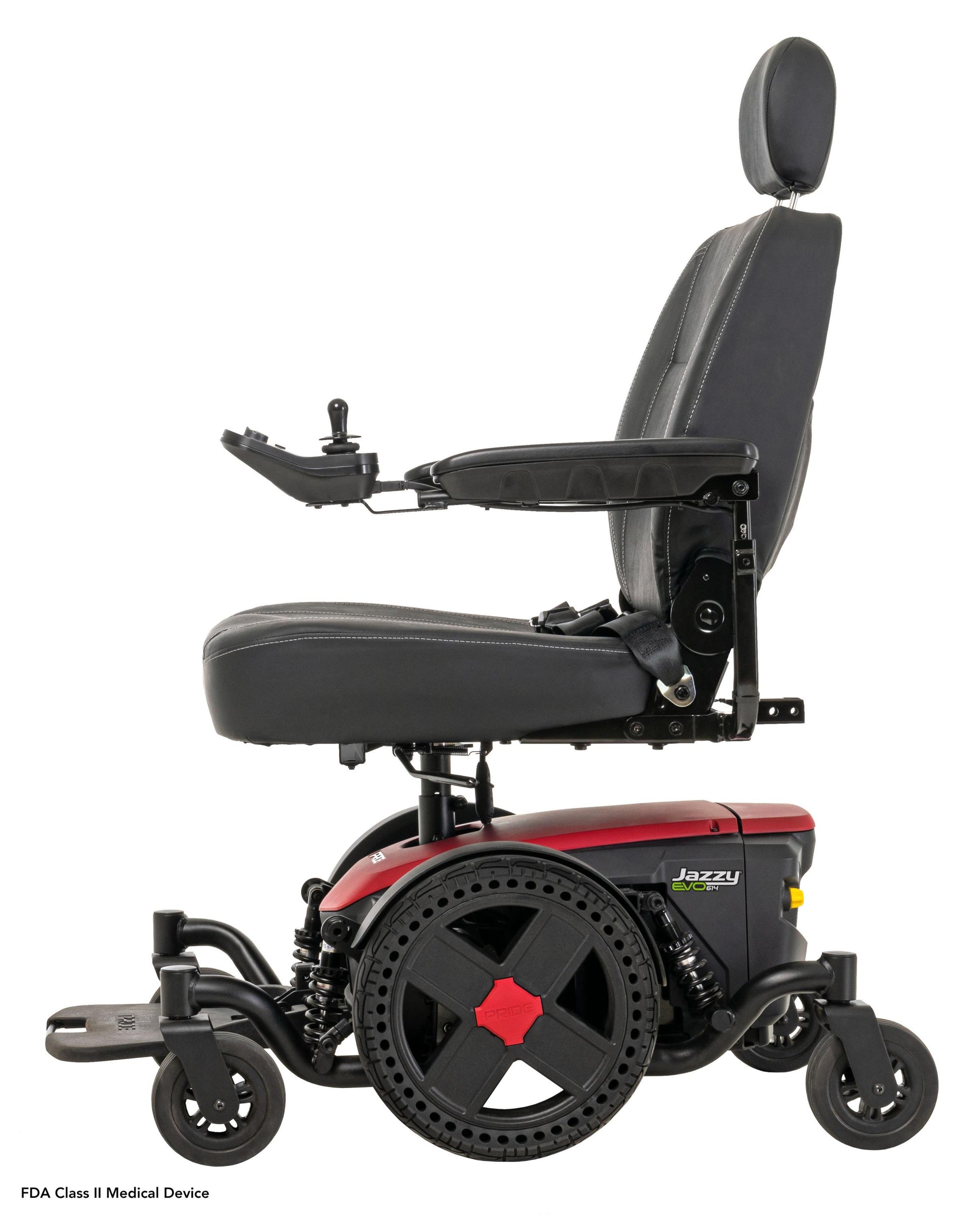

The Jazzy EVO 614 is a top-of-the-line mobility solution, classified as a FDA Class II Medical Device. With cutting-edge 13.75-inch center drive wheels, a 3” ground clearance, and a maximum speed of 4.4 mph / 7 km/h, it is designed to effortlessly traverse both indoor and outdoor terrain. Boasting a compact size of just 22 inches and an impressive turning radius of under two feet, this power chair excels at maneuvering through tight spaces, making it the perfect choice for both home and outdoor use.
When we imagined the Jazzy® EVO 614 power wheelchair, we thought about all the opportunities that come only once.
Your grandchild only graduates from high school once. You might only ever get one chance to take an Alaskan cruise with your high school friends. Your favorite play is showing for one weekend only at the local theater.
Will you be there?
Life is filled with important moments that are special. The Jazzy® EVO 614 power chair ensures you never miss an instant. Embrace new possibilities.

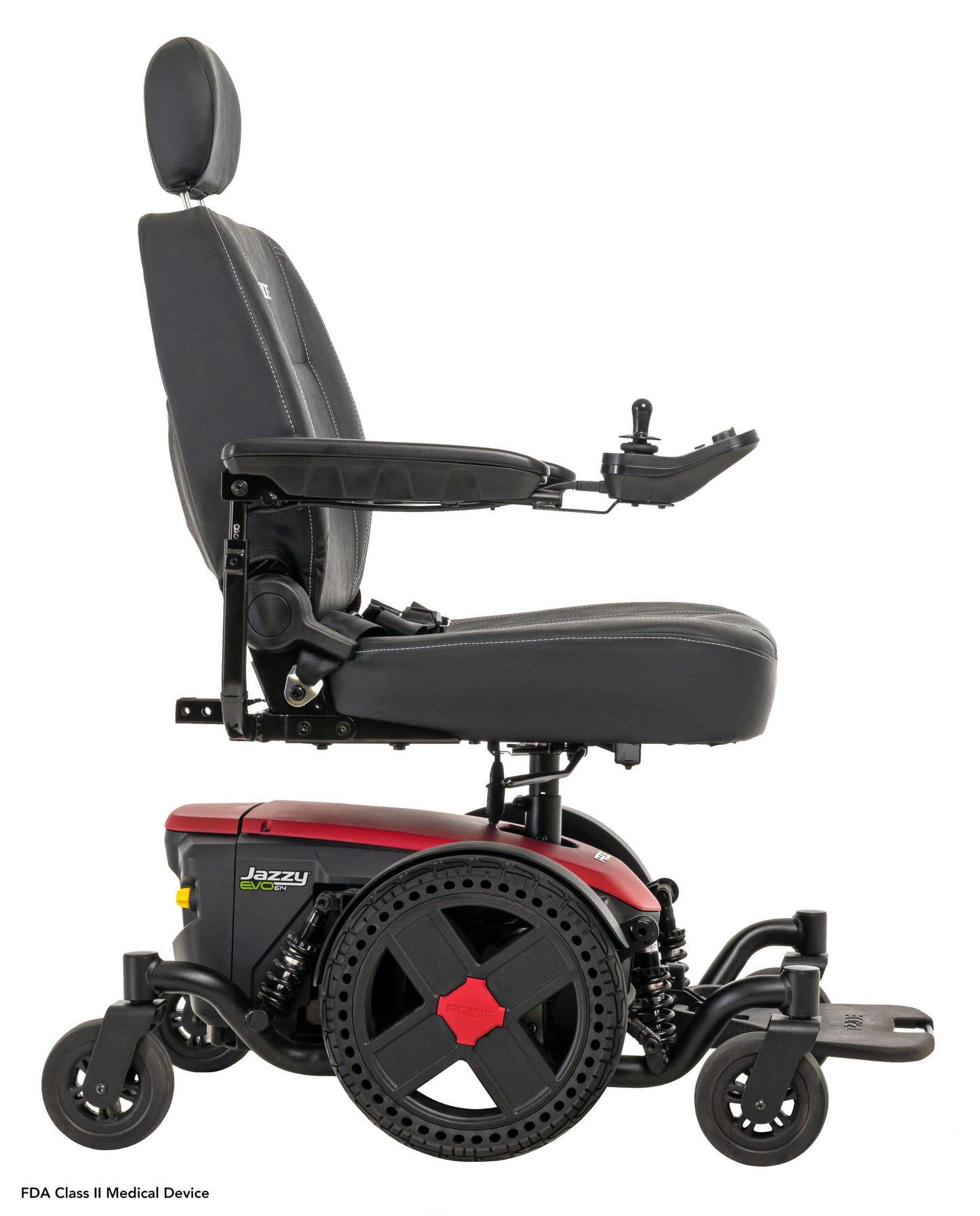

The Jazzy® EVO 614 is your ultimate mobility alternative. With new 13.75-inch perforated center drive wheels, a 3" ground clearance and new top speed of up to 4.4 mph, it’s built for crossing the threshold for everyday use.
At just 22- inch, Jazzy® EVO 614’s turning radius comes in under two feet, which means your power wheelchair more easily navigates tight turns indoors and in your favorite shops and restaurants.

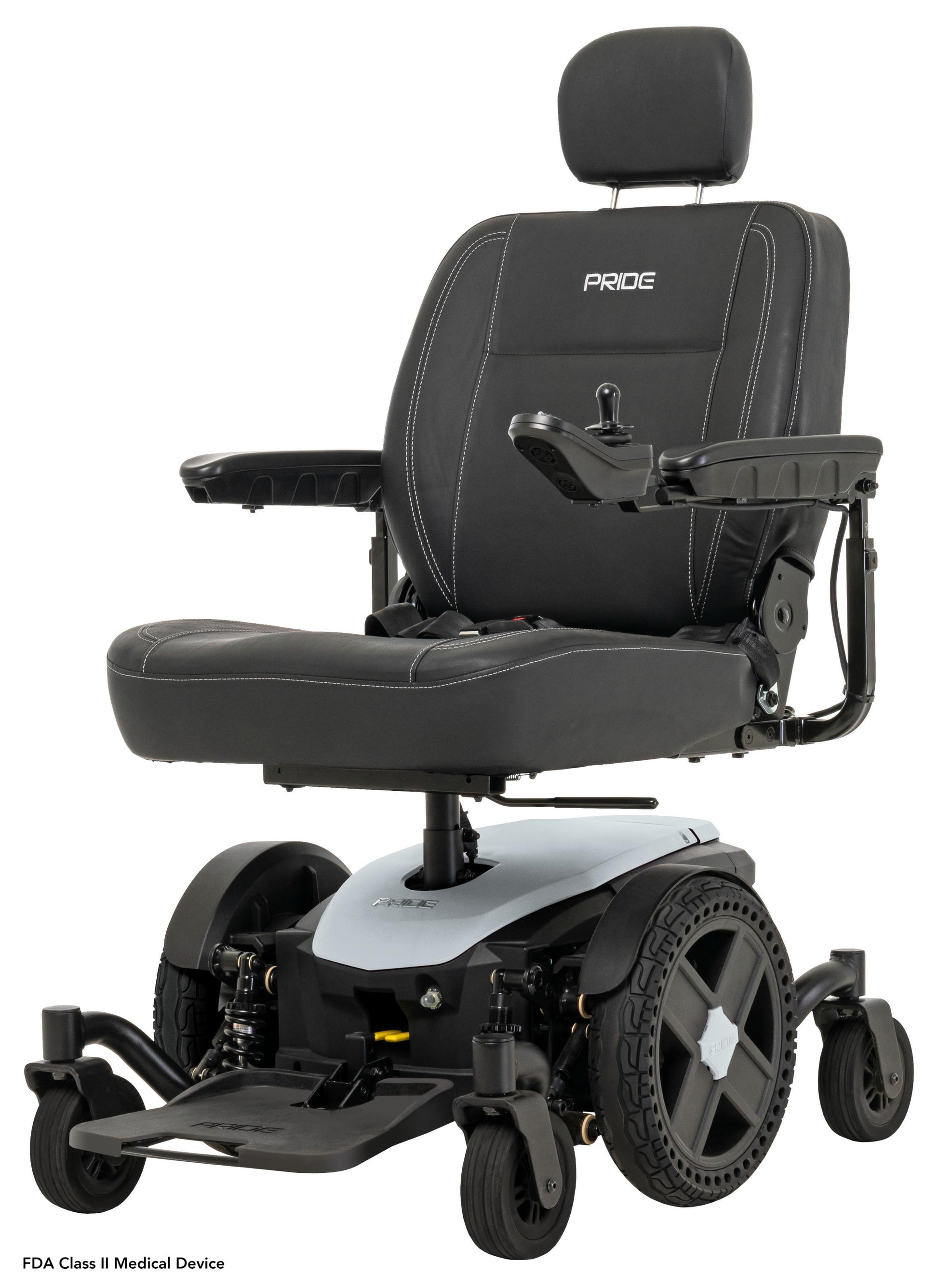

You want color options, and Jazzy® EVO 614 has them. Interchangeable shrouds come in six striking colors. When you’re ready for something new, simply call your Pride dealer.
Don’t give up on those once-in-a-lifetime moments. Find a Pride dealer near you and start your own adventure.
| Model | Jazzy Evo 614 |
|---|---|
| Weight Capacity | 300 lbs. |
| Maximum Speed* | Up to 4.4 mph |
| Ground Clearance | 3” |
| Turning Radius** | 22” |
| Overall Length** | 40.5” |
| Overall Width | 25.4” |
| Seat-to-Floor Range | 22”-24” |
| Front Wheels | 6” |
| Drive Wheels | 13.75” perforated |
| Rear Wheels | 6” |

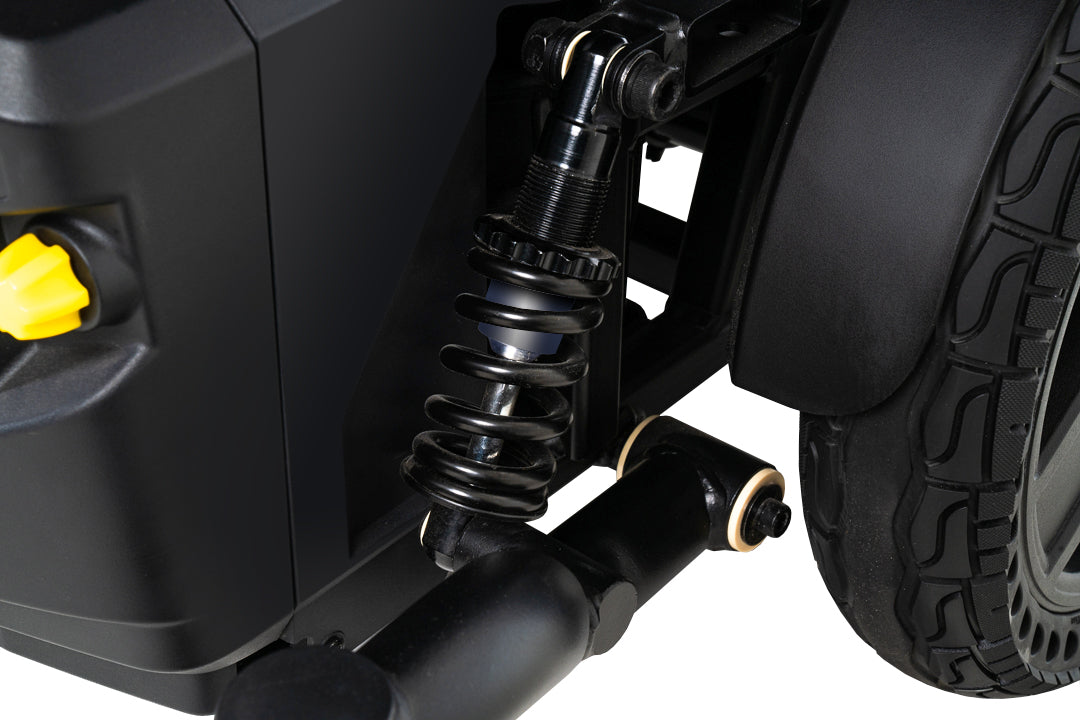

| Suspension Type | Full independent front and rear Active-Trac® ATX Suspension |
| Range Per Charge* | Up to 19 miles at 300 lbs., Up to 21.5 miles at 200 lbs. |
| Total Weight with Batteries** | 255.5 lbs. |
| Heaviest Piece When Disassembled** | 125.7 lbs. (base) |

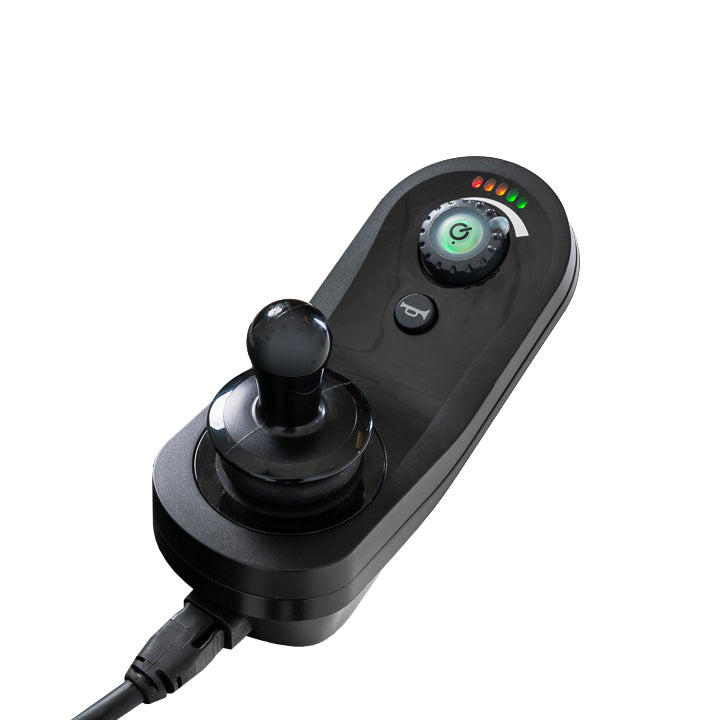

| Standard Electronics | 60A Dynamic Linx |
| Battery Requirements | (2) NF-22 |
| Battery Charger | 5 amp, off-board |
| Warranty | Frame: 5-year limited Drivetrain: 13-month limited Electronics: 13-month limited Battery: 13-month limited |
Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
| Model | Jazzy 614 HD |
| Weight Capacity | 300 LBS |
| Turning Radius1 | 22" |
| Width1 | 25.4" |
| Length1,2 | 40" |
| Maximum Speed3 | Up to 4.4 mph |
| Ground Clearance1 | 3" |
| Front Wheels | 6" |
| Drive Wheels | 13.75" Perforated |
| Rear Wheels | 6" |
| Drivetrain | Two In-Line HD Motors |
| Braking System | Regenerative and Electromechanical |
| Suspension Type | Full independent front and rear Active-Trac® ATX Suspension |
| High-Back Seat (max. size) | 18"W x 20"D |
| High-Back Seat-to-Floor Range | 22" - 24" |
| Standard Electronics | 60A Dynamic Linx |
| Battery Size (2 required) | 12 volt, NF-22 |
| Standard Battery Charger | 5Amp, off board |
| Per-Charge Range3,11 | Up to 19 miles at 300 lbs., Up to 21.5 miles at 200 lbs. |
| Battery Weight9 | 36 lbs. each (2) |
| Weight of Heaviest Piece5 | 125.7 Lbs |
| Standard Seat Weight | 57.8 lbs. (high-back) |
| Standard Seat Size | 20" x 18"-20" |
| Warranty | Frame: 5-year limited Drivetrain: 13-month limited Electronics: 13-month limited Battery: 13-month limited |
Notes: 2 Varies with user weight, terrain, battery type, battery condition and tire pressure. 3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or - 3%). 4 Total weight includes base, seat and batteries. 5 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. 6 Battery weight may vary based on manufacturer | |
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
Frame: 5-year limited
Drivetrain: 13-month limited
Electronics: 13-month limited
Battery: 13-month limited
