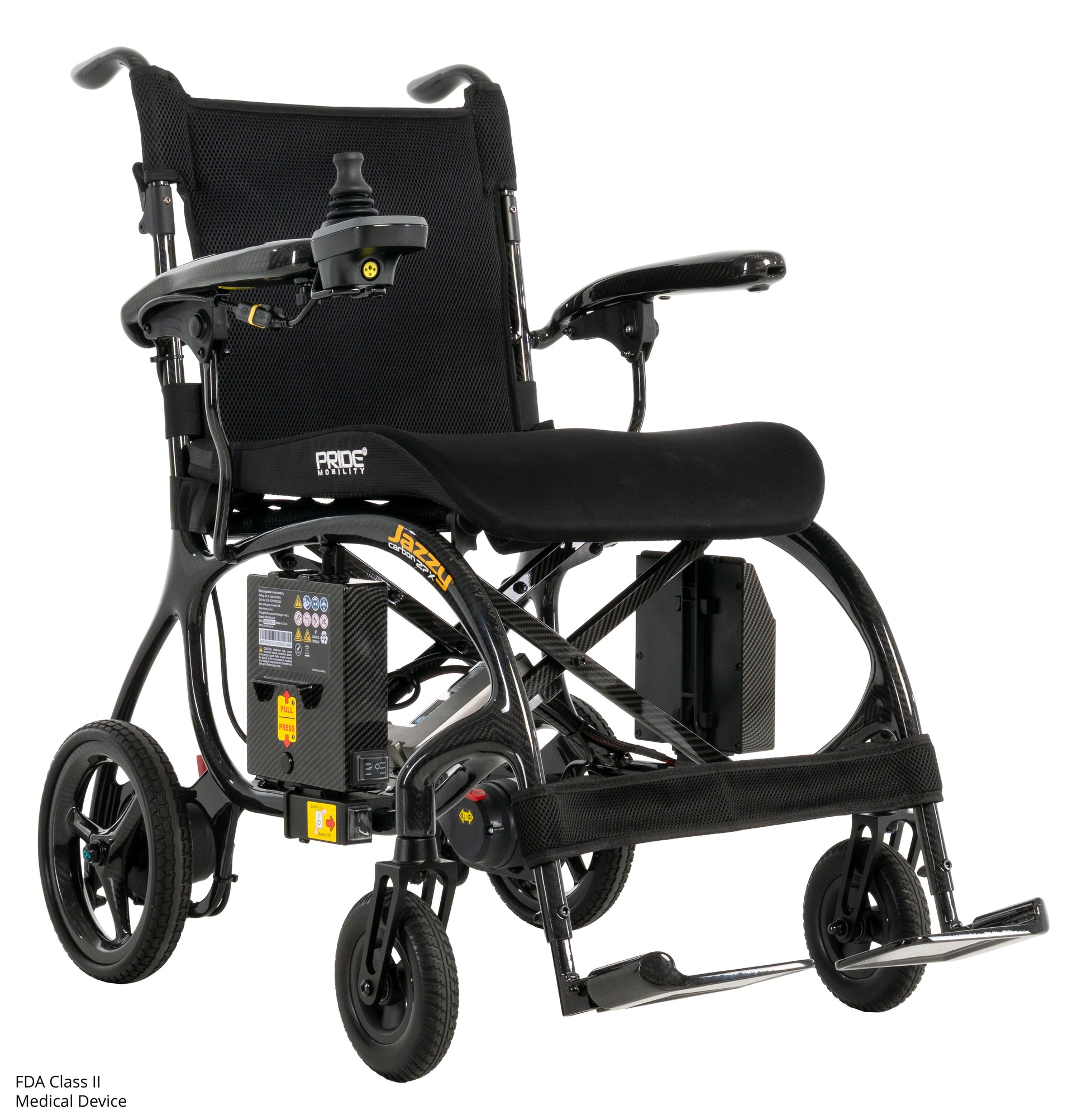

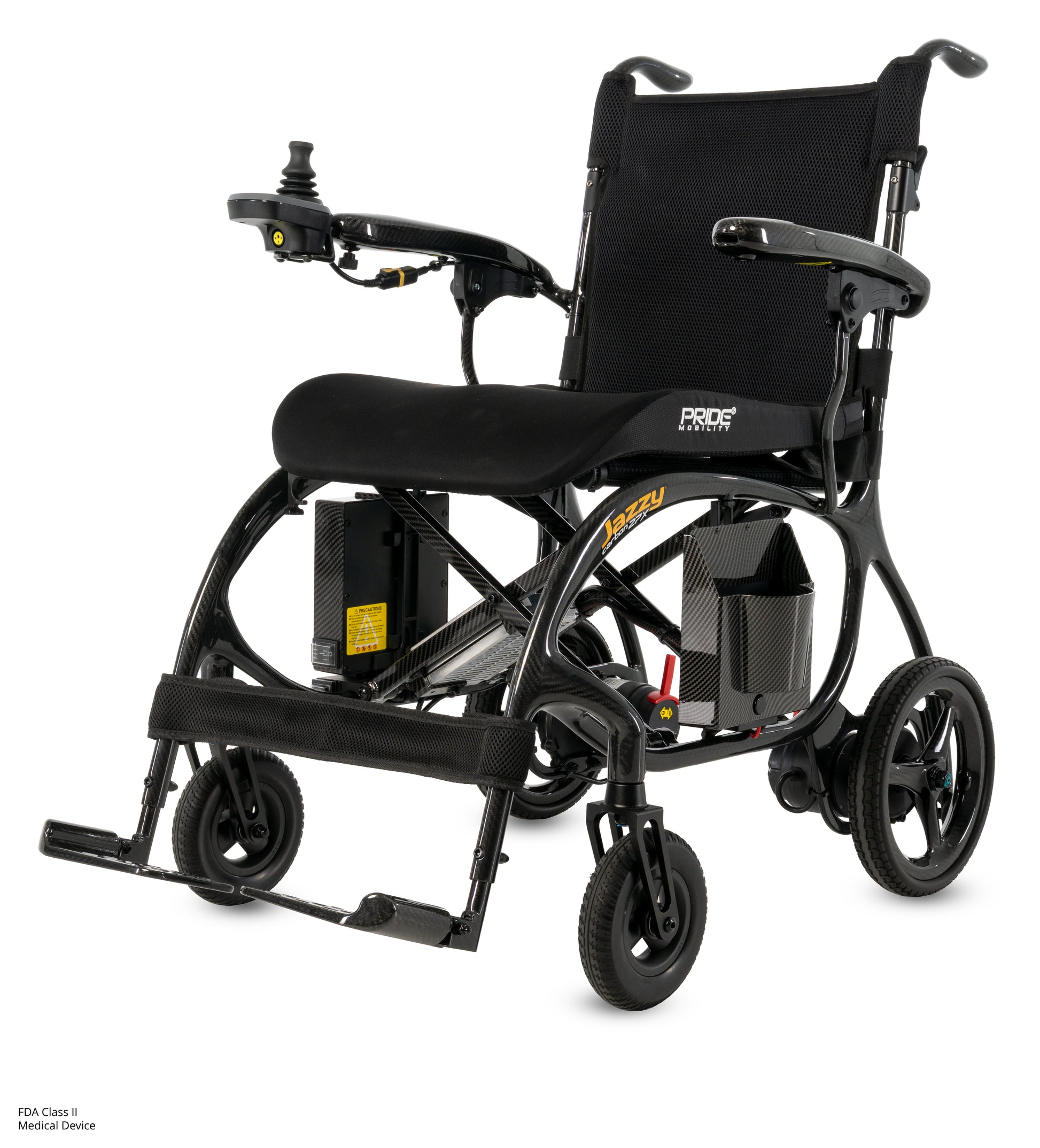

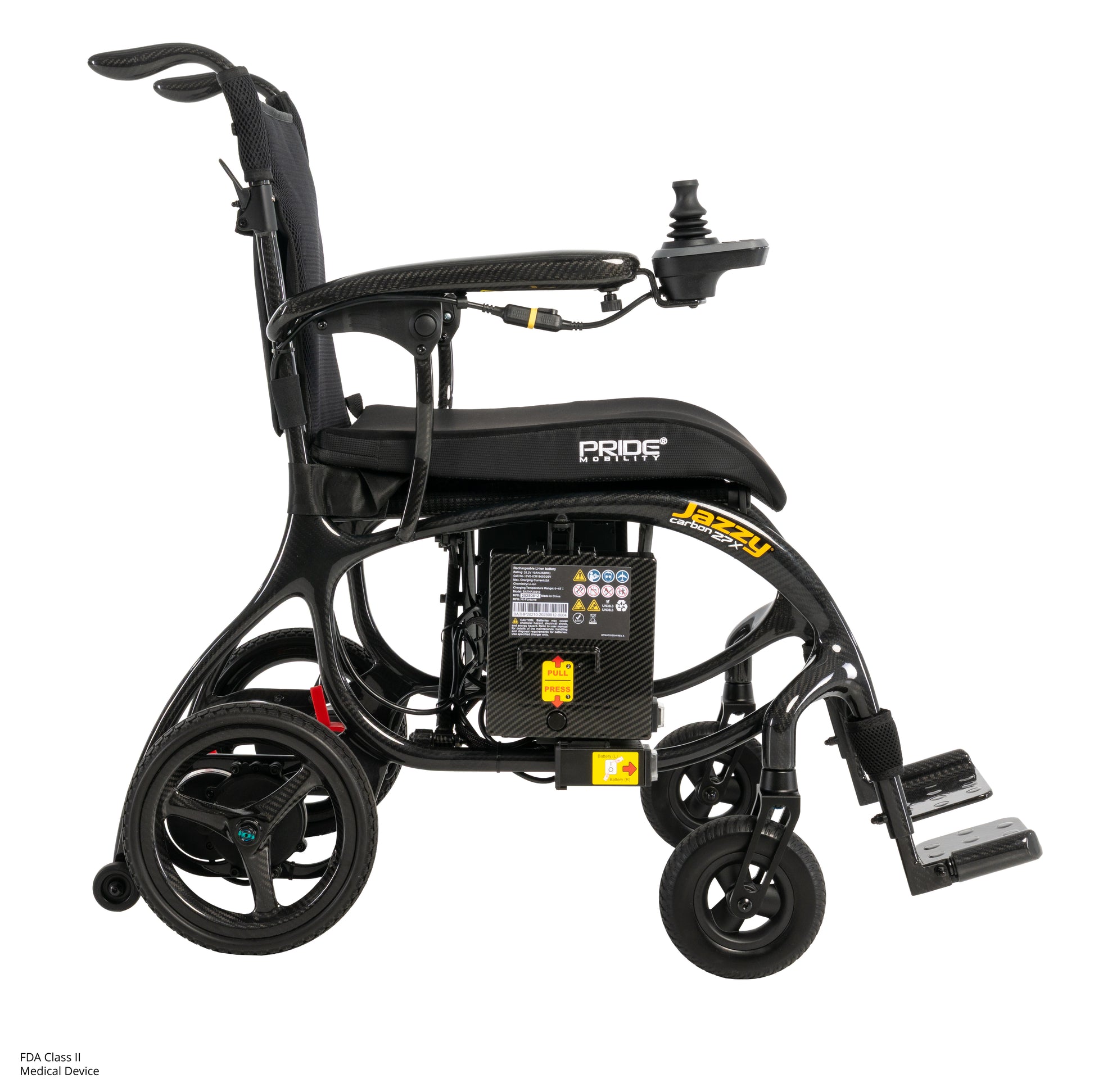

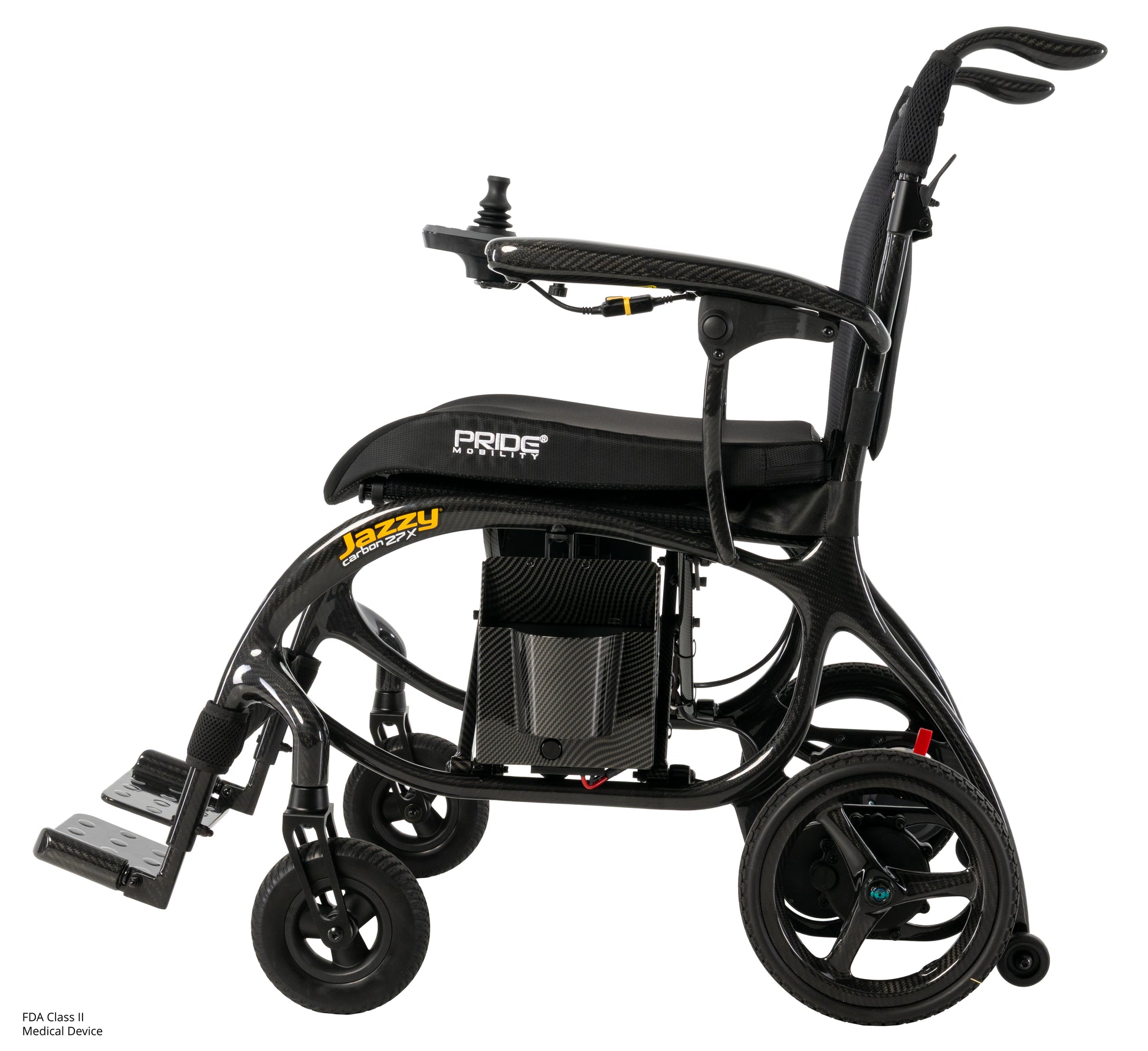

The Jazzy Carbon 27X combines rapid vertical folding via its X-frame design with ultralight 27.5 lb construction. Built from durable carbon fiber, it delivers strength without weight—engineered for active users who demand portability and reliability.
• 27.5 lbs. without the battery
• 275 lb. weight capacity
• Top speed up to 3.7 mph

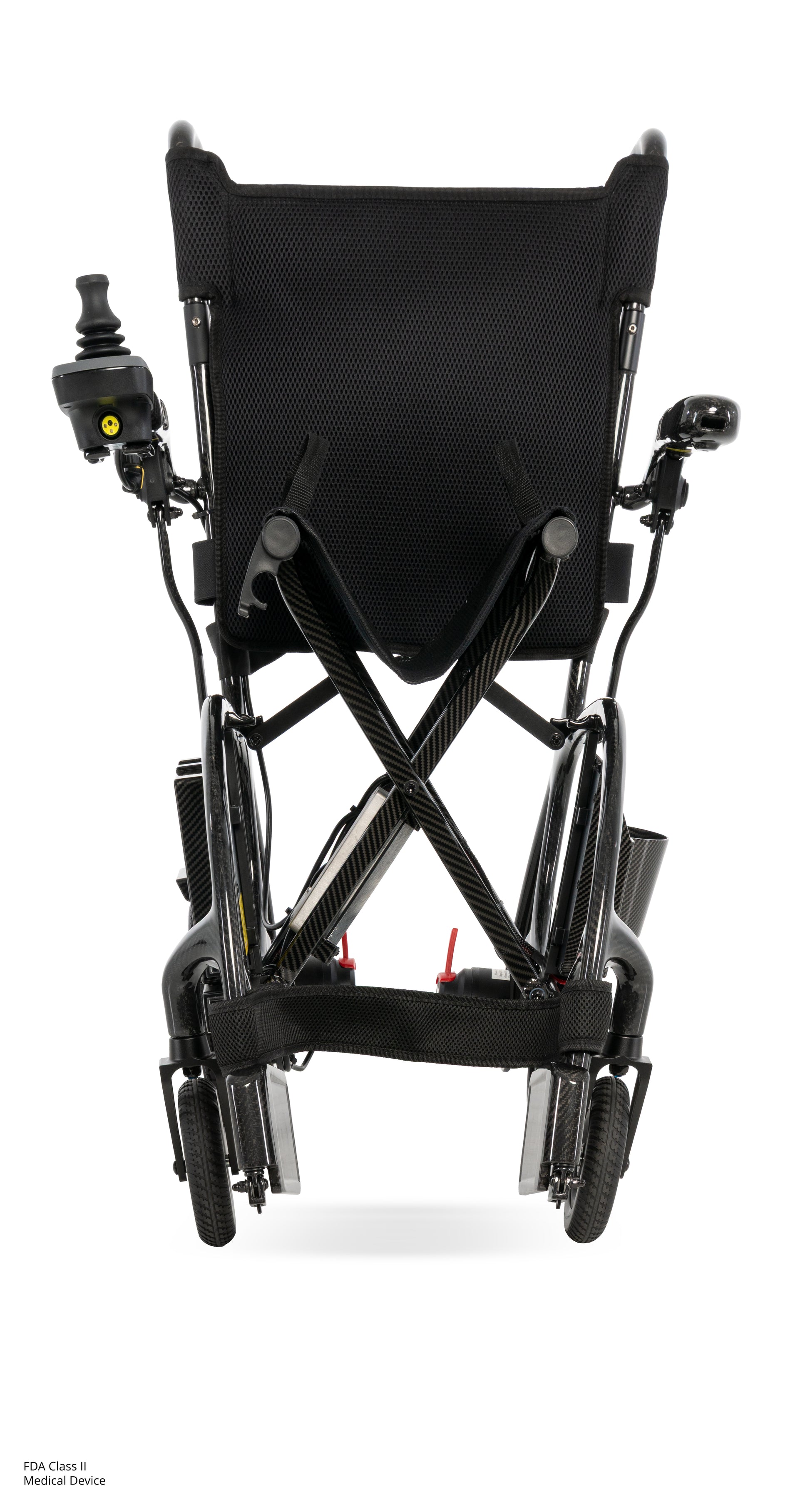

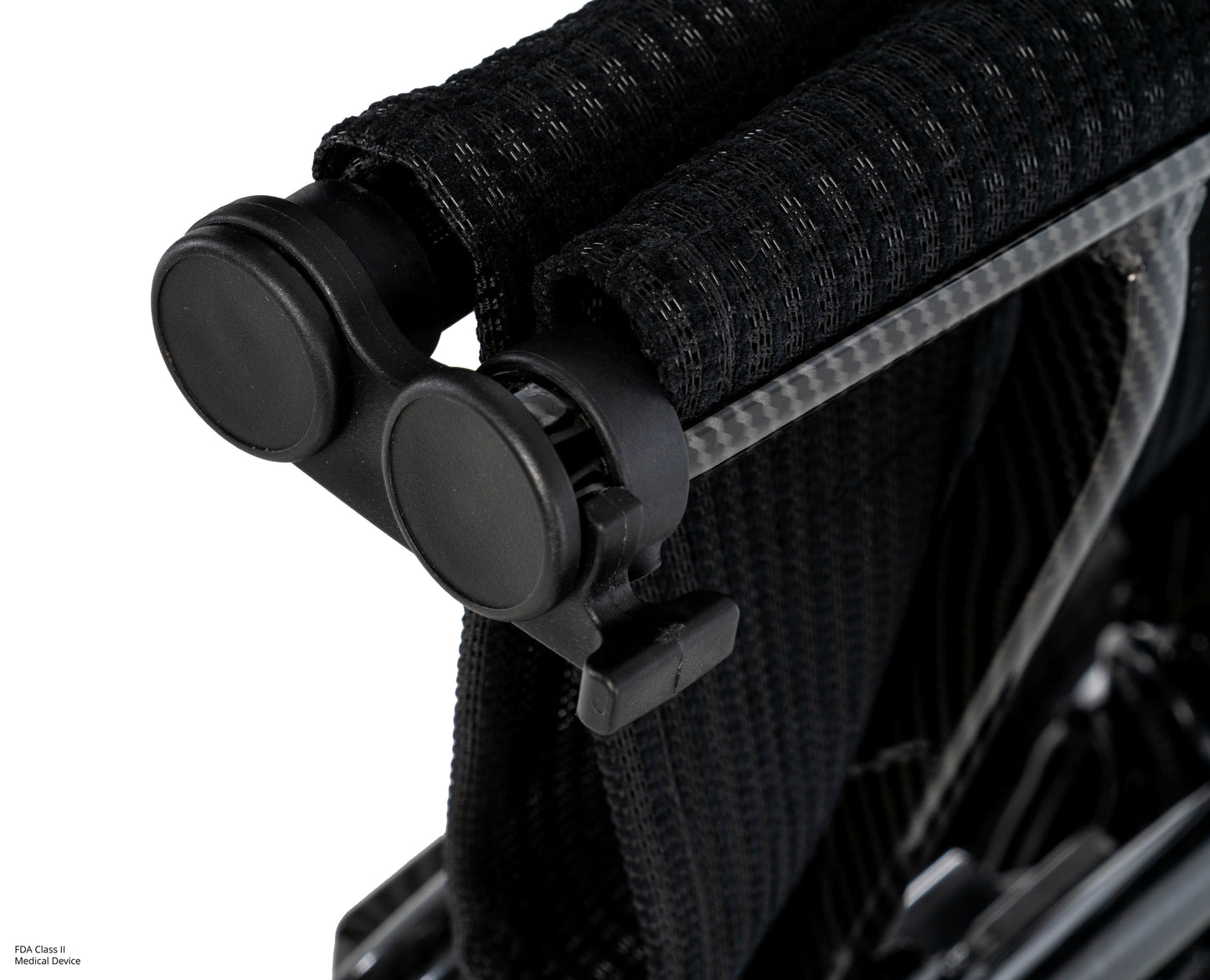

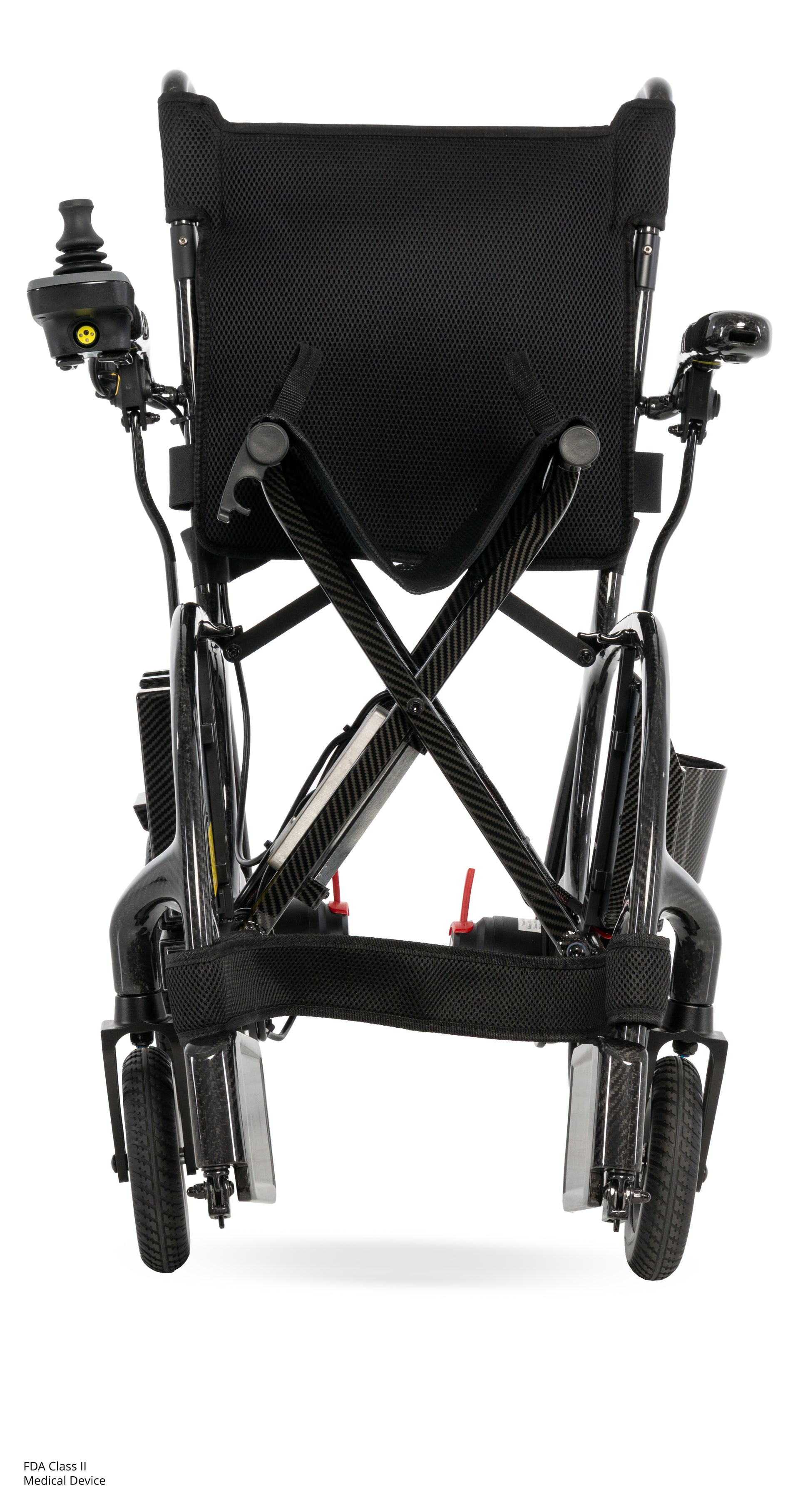

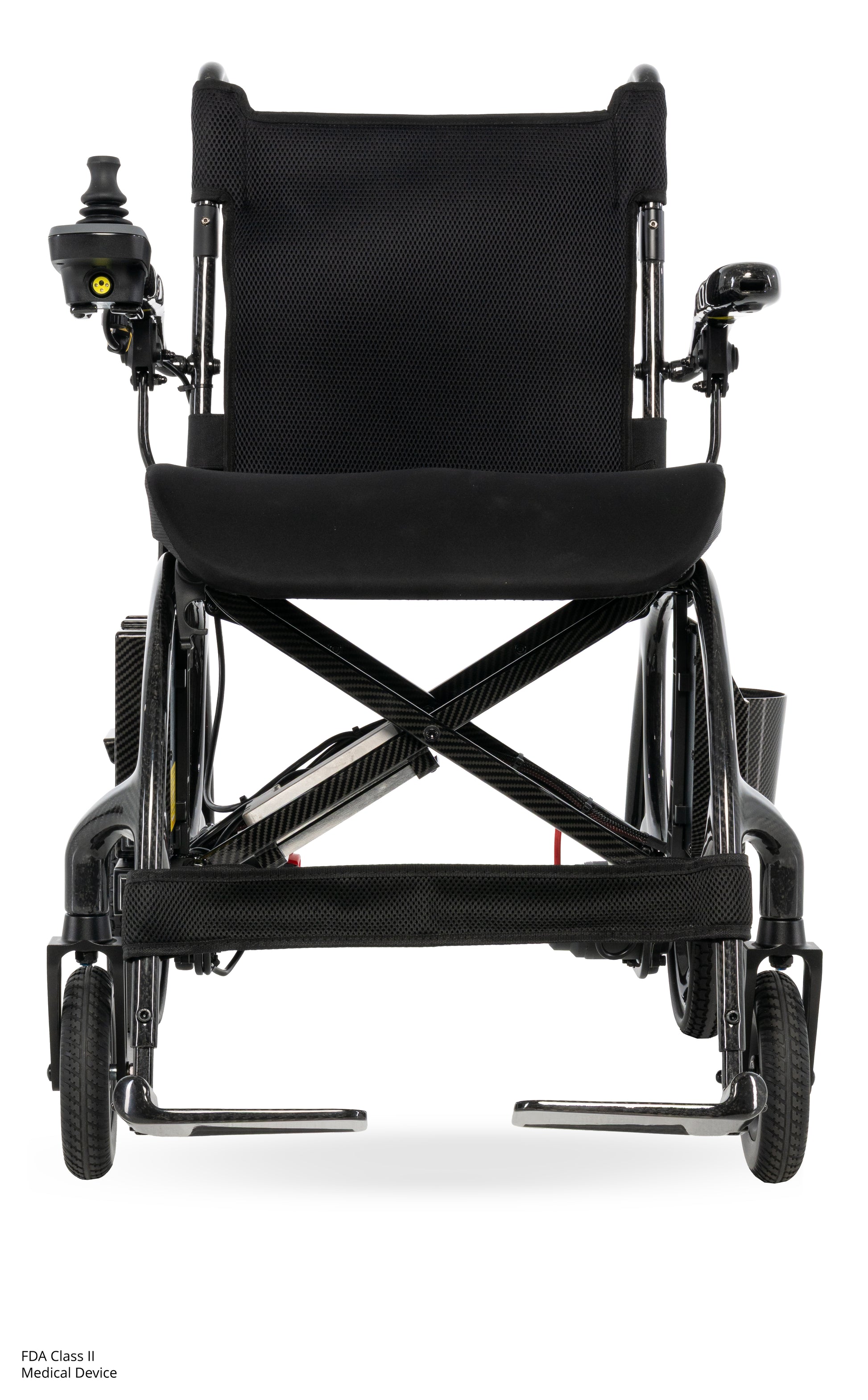

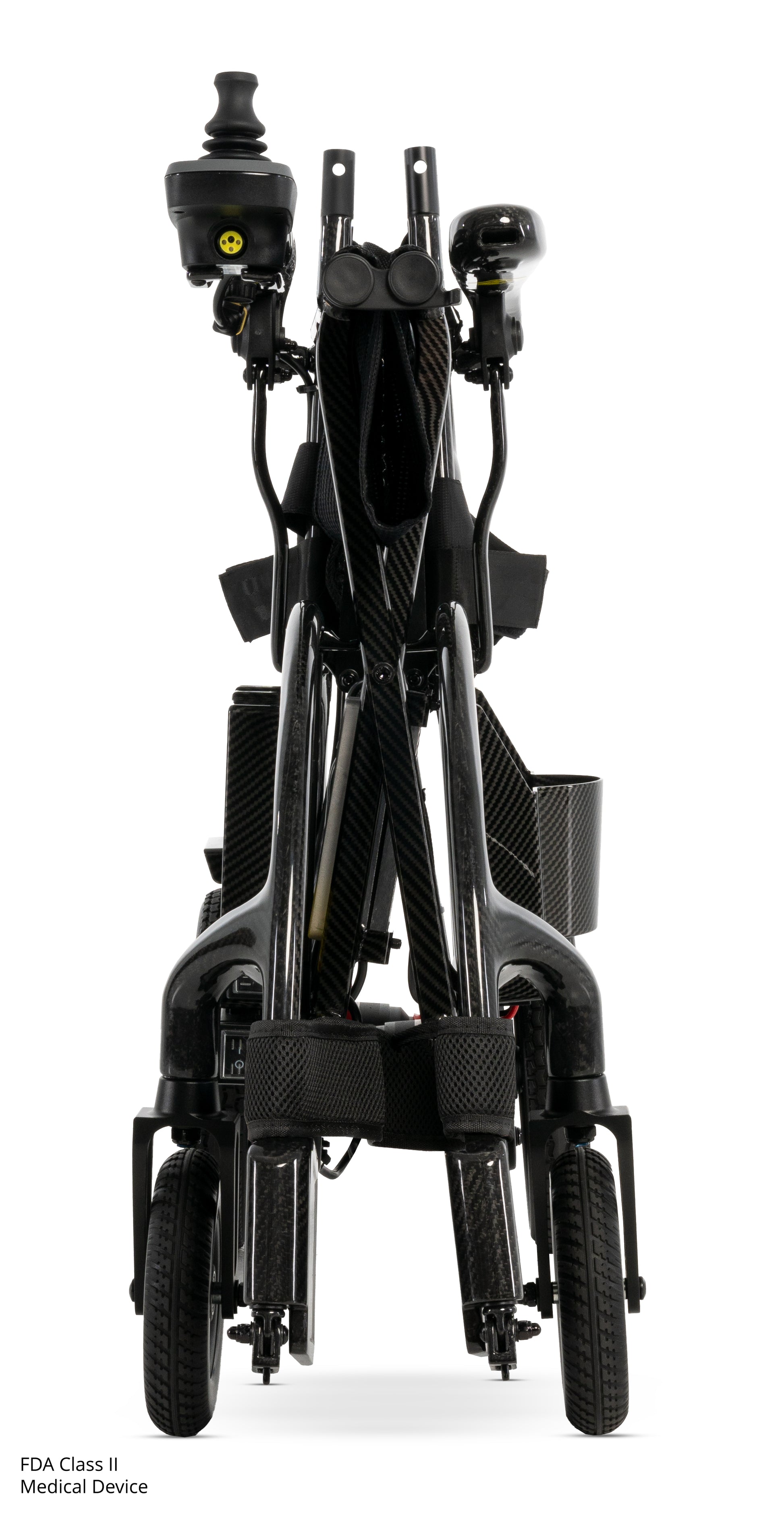

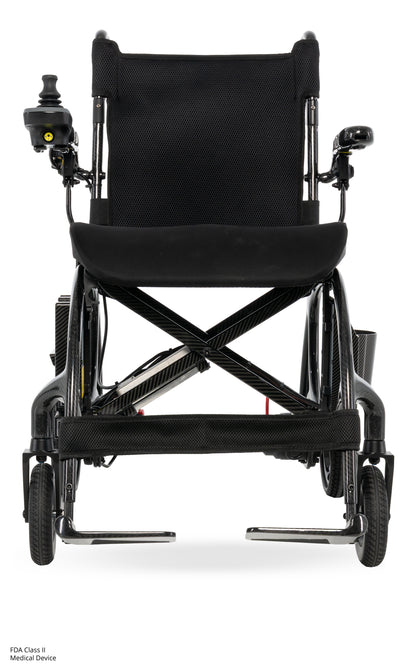

• X-frame design that folds nearly flat when stood upright, making it easy to store and transport
• Carbon fiber frame provides
durability and keeps the unit lightweight
• Folded dimensions: 34” L x 12” W x 30” H
• Lightweight Flip up carbon fiber arms

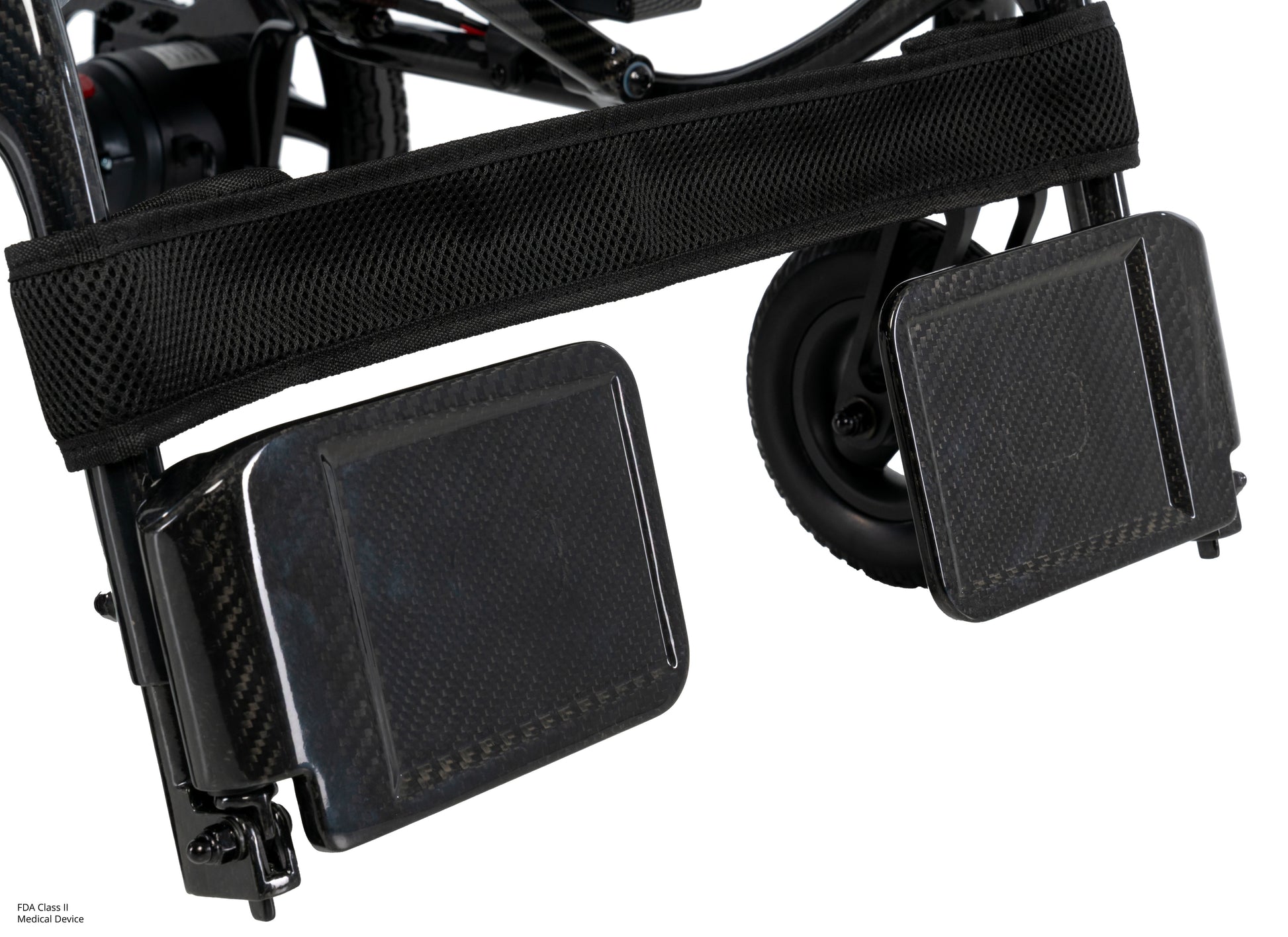

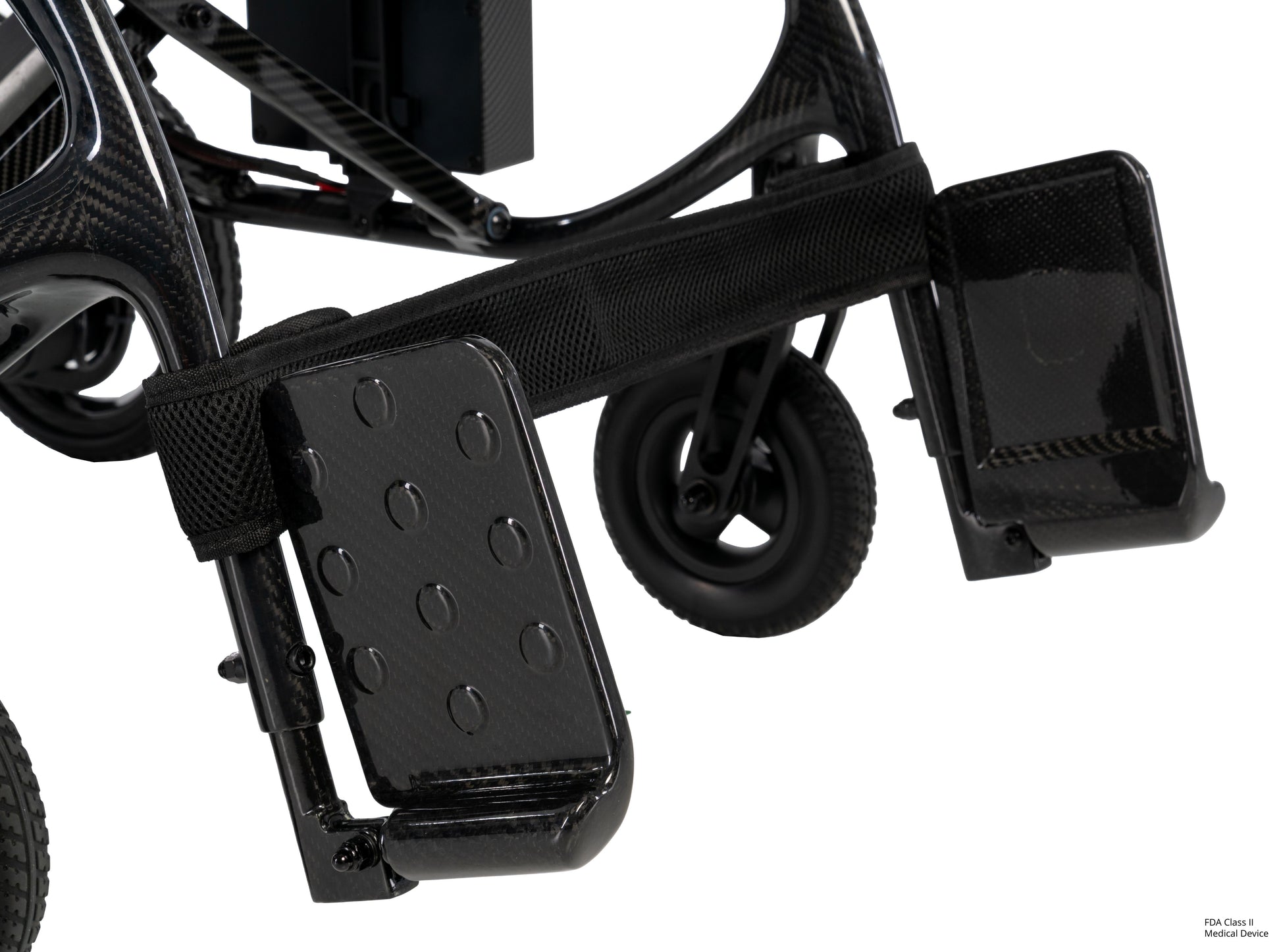

• Adjustable Foot Rests

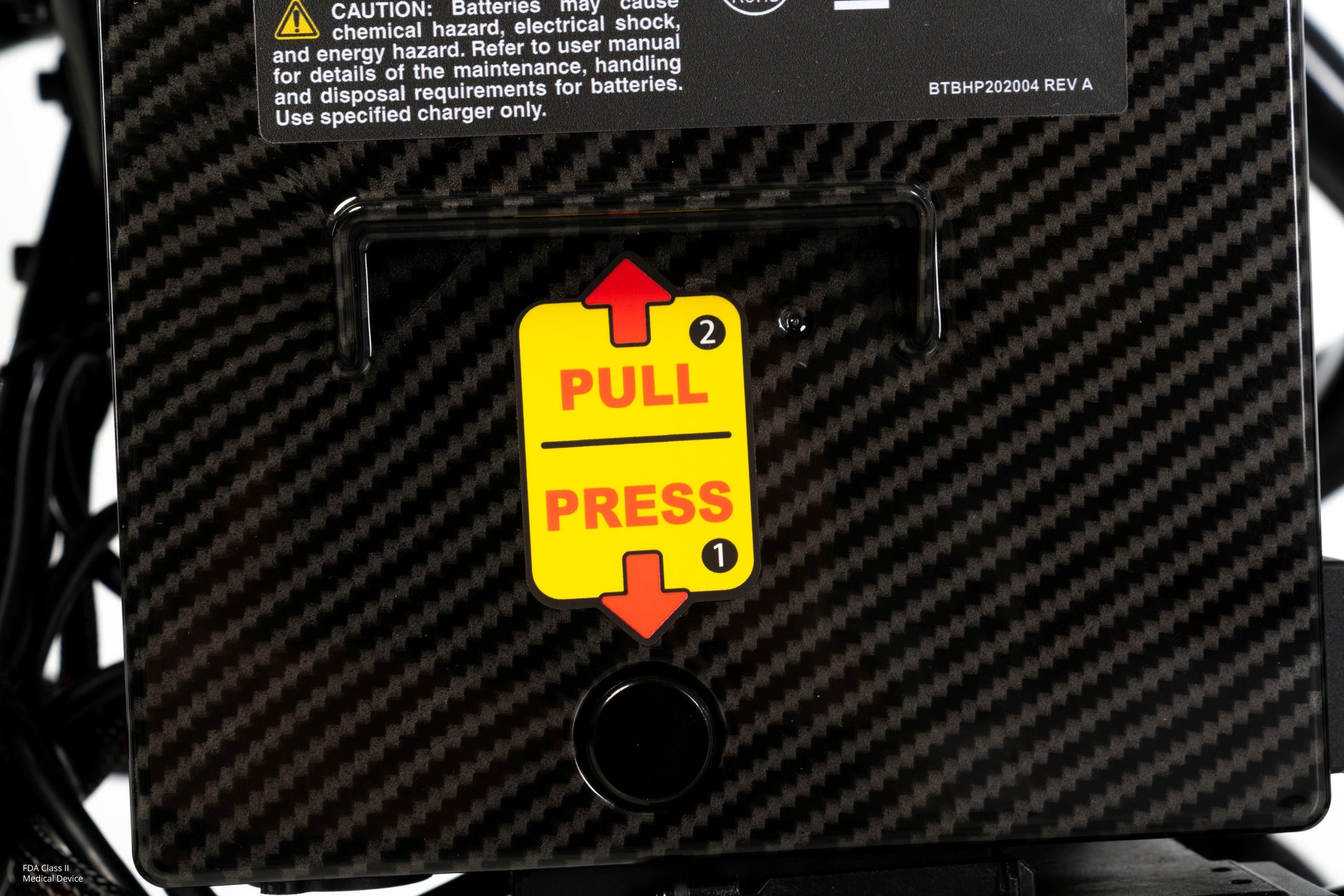

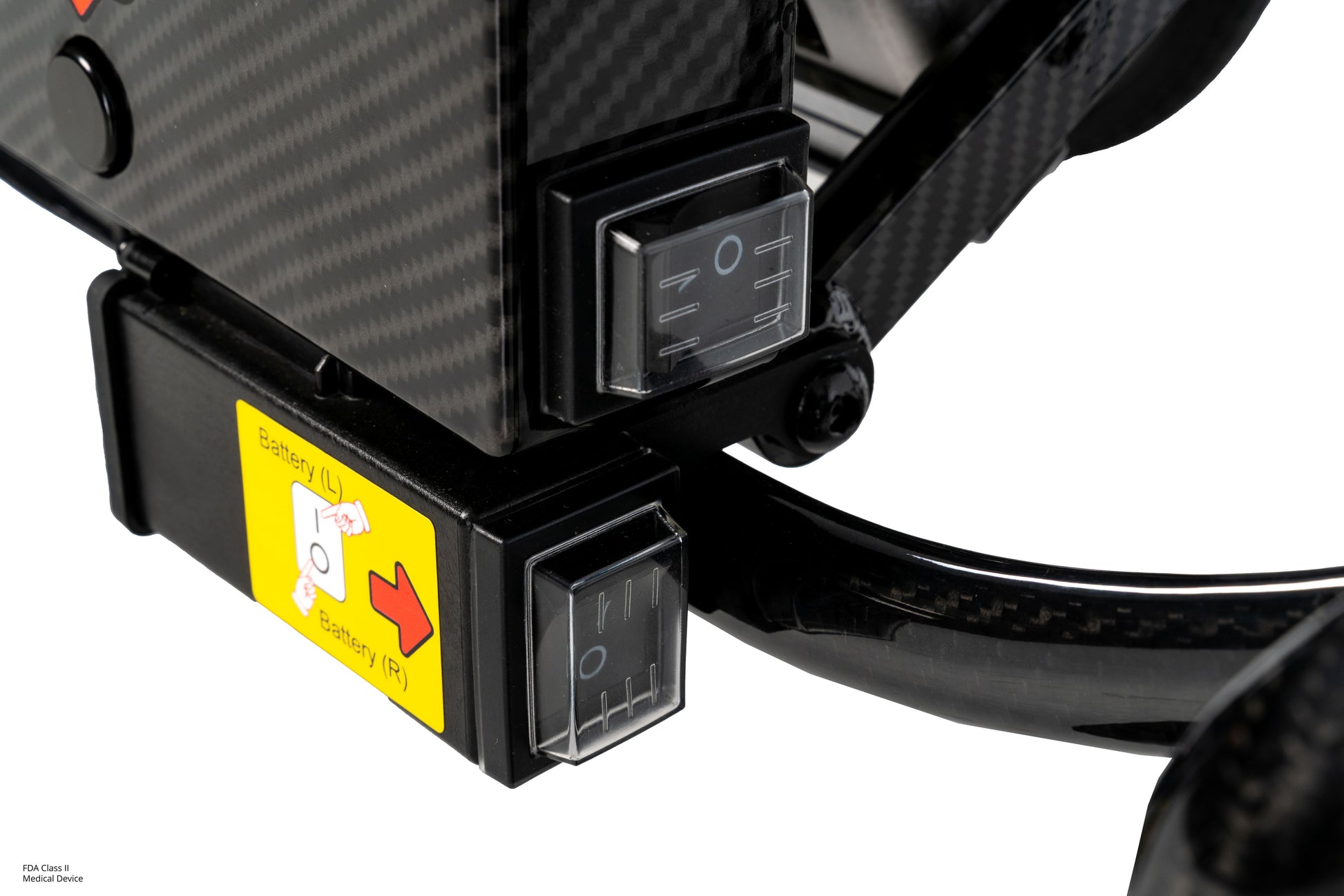

• Airline-compliant lithium battery** (10 Ah only)

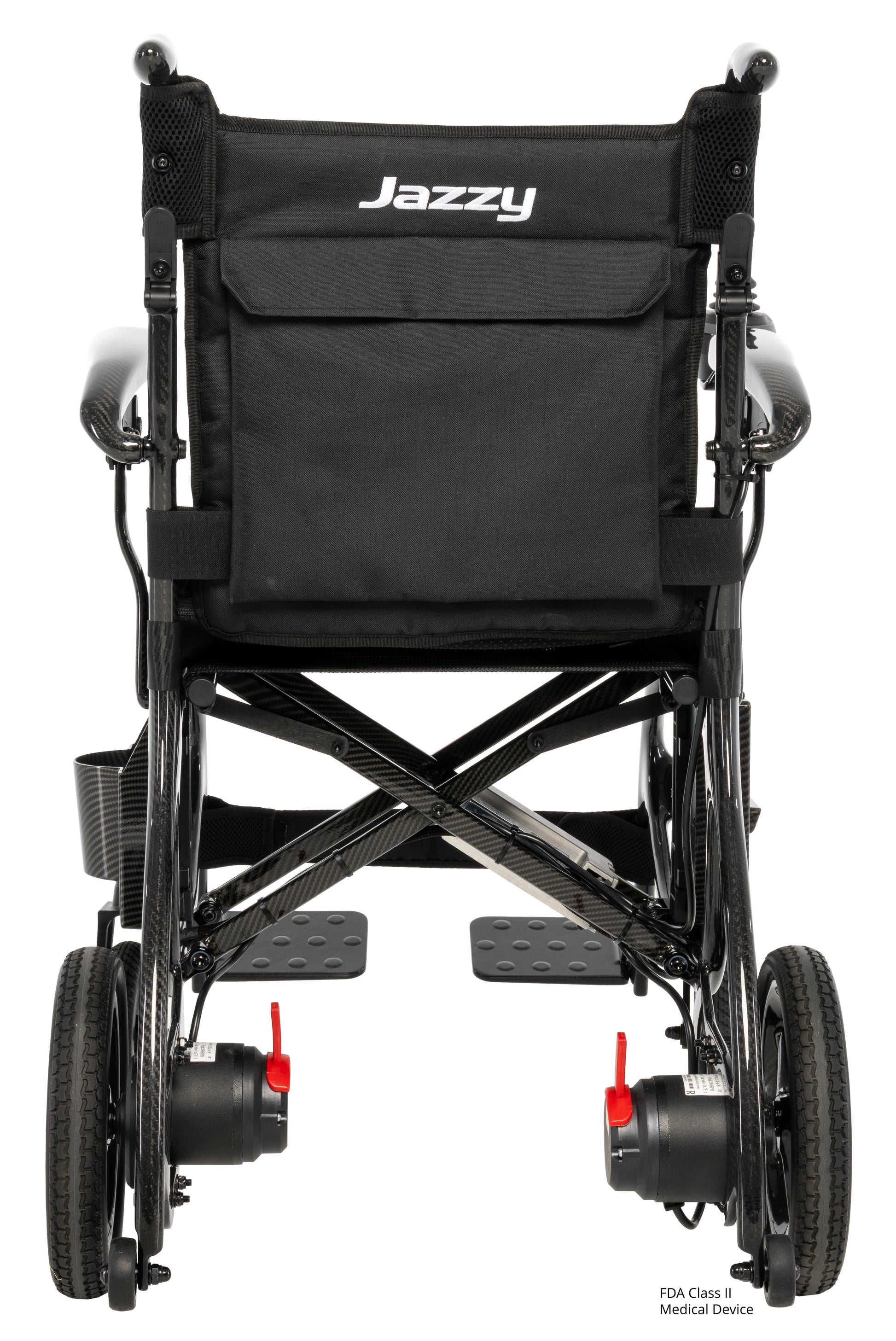

• Behind the seat Storage pocket
• Cushion and adjustable lap belt (standard)

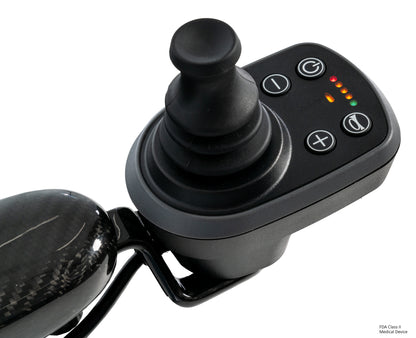

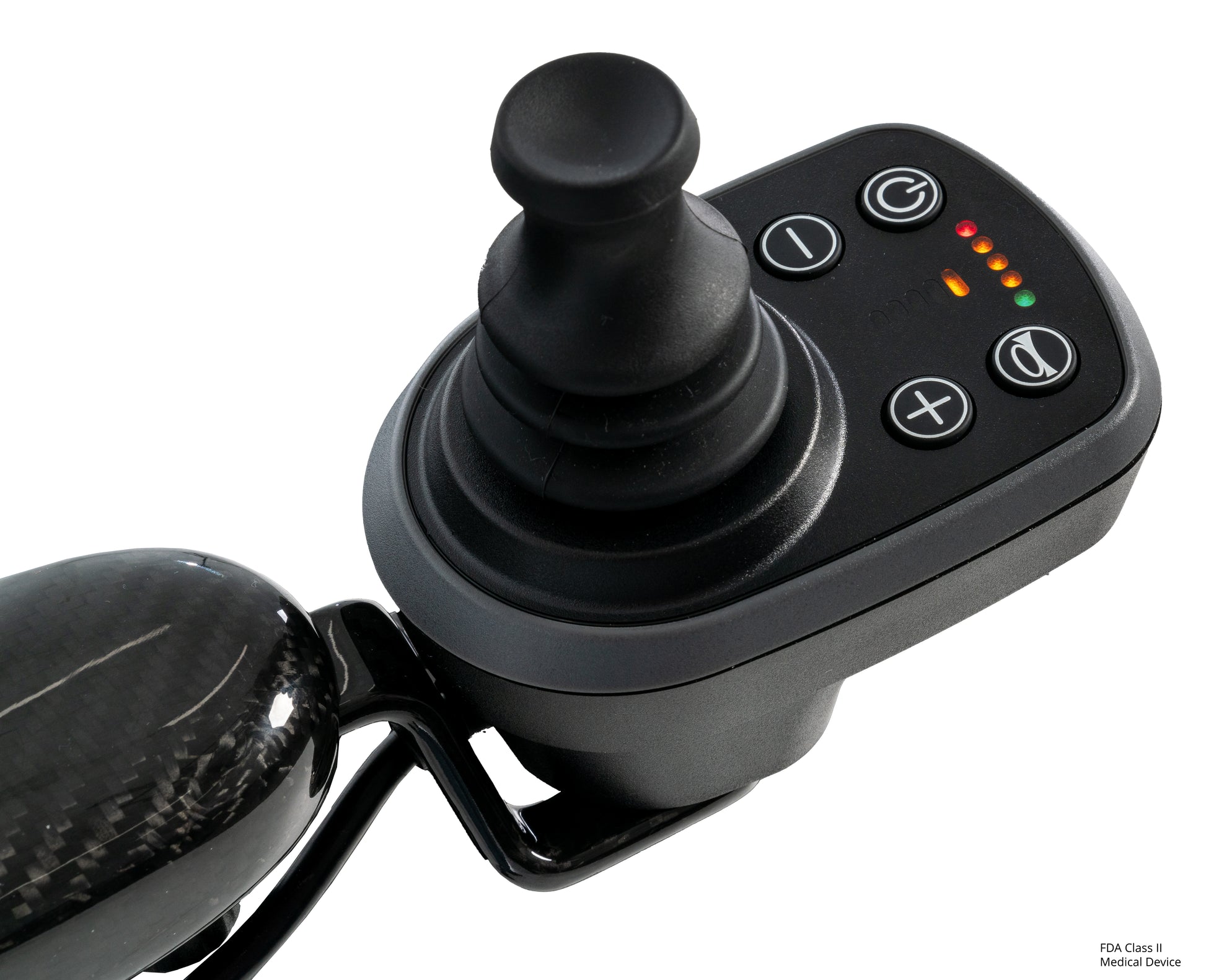

• Programmable quick disconnect joystick (standard)
• Carbon fiber Storage with Cup Holder (standard)

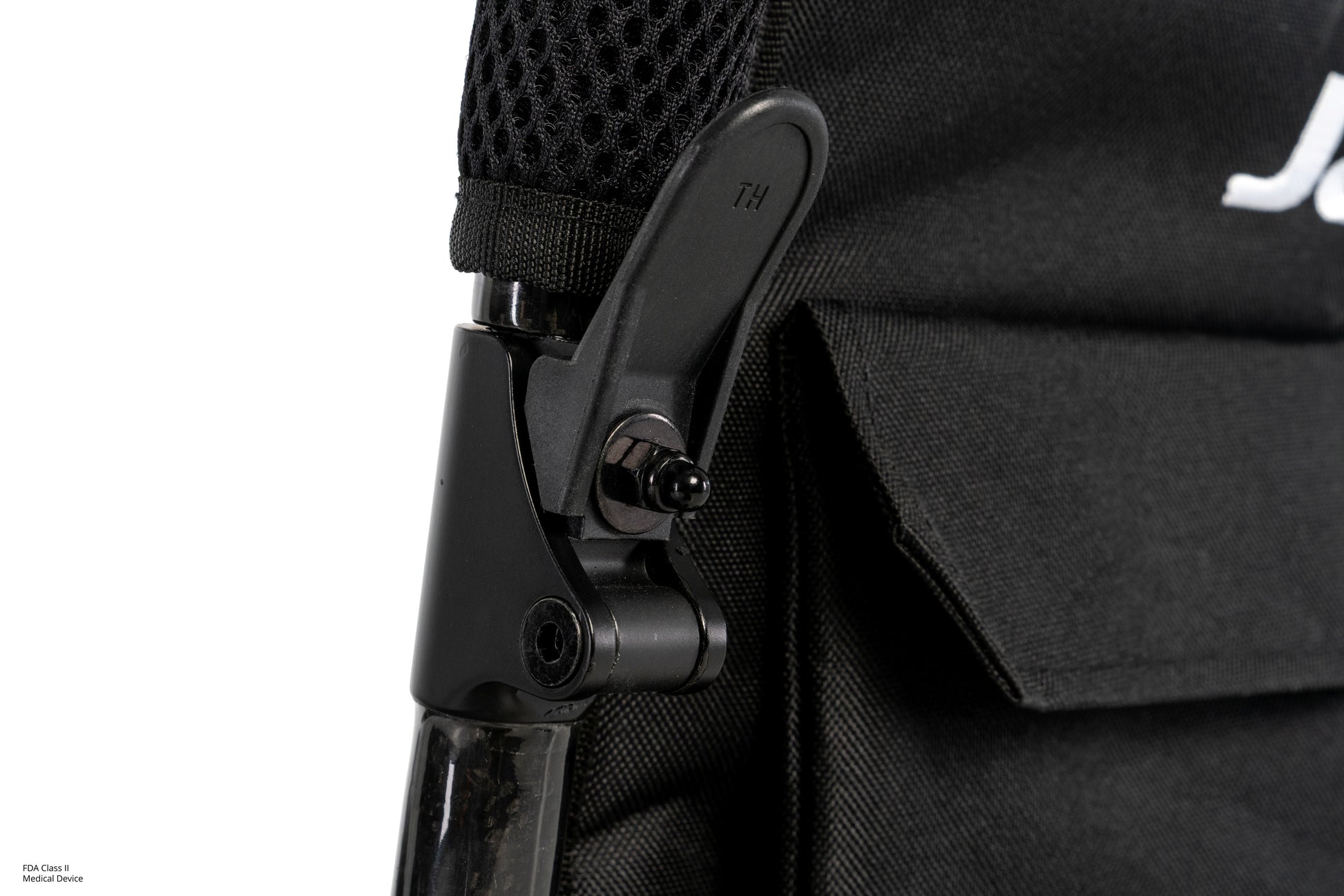

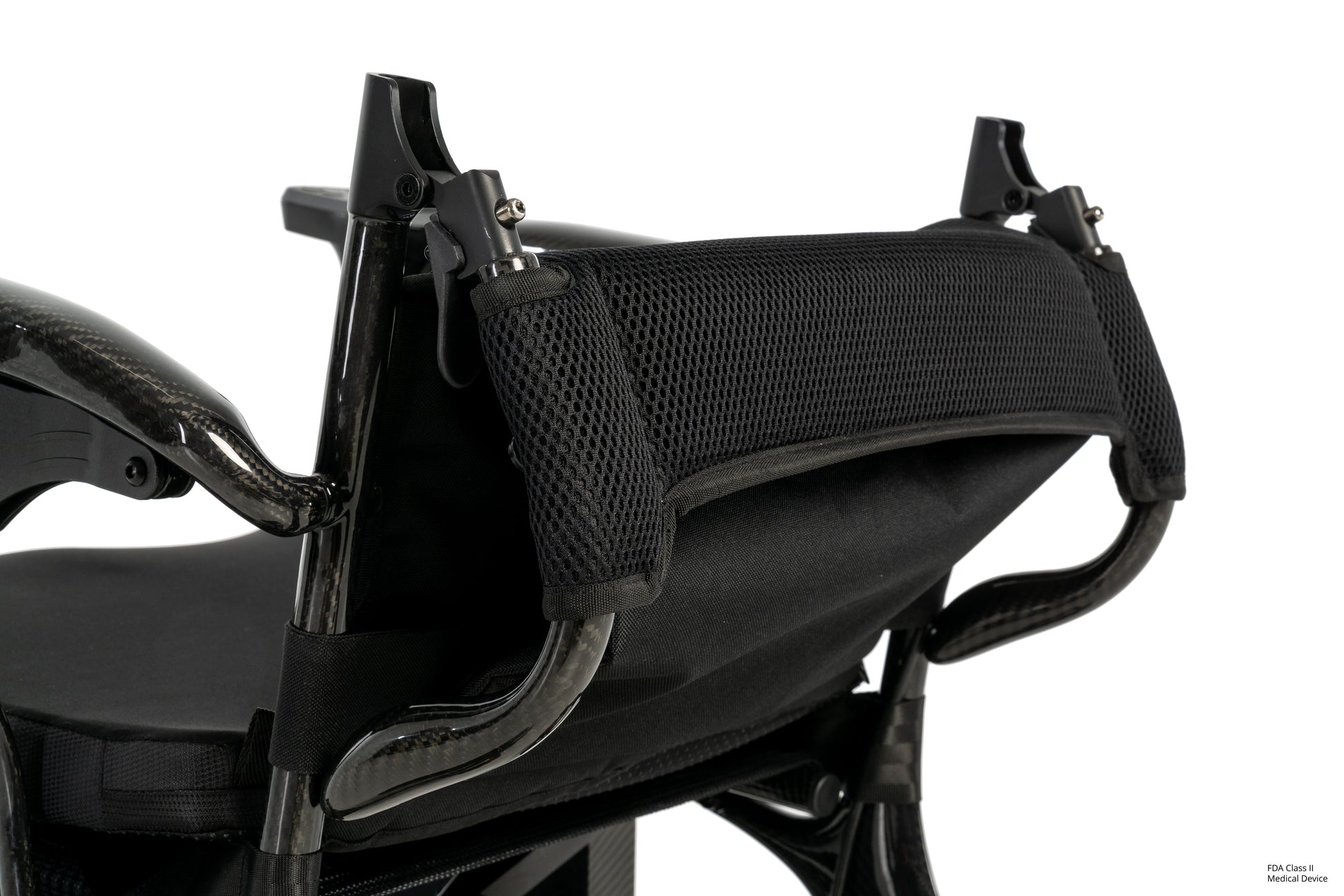

• Collapsible handles for easy storage
*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
**Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® Carbon and its lithium ion battery are permitted.
Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
| CATEGORY | SPECIFICATION |
|---|---|
| Model | Jazzy® Carbon |
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24" |
| Maximum Speed1 | Up to 3.7 mph |
| Ground Clearance3 | 2" |
| Overall Length3 | 37" |
| Overall Width3 | 24" |
| Seat-to-Ground Height | 19" |
| Seat-to-Foot Platform Height | 14.5" (no adjustment) |
| Front Wheels | 7" |
| Rear Wheels | 8.5" |
| Seat-to-Floor Range with Standard Cushion | 20.75" |
| Seat-to-Floor Range without Cushion | 18.75" |
| Power Elevating Seat | NA |
| Seat Weight(s) | NA |
| Battery Sizes | 24V 12AH (288WH) |
| Suspension | Front |
| Total Weight Without Batteries3,5 | 39 lbs. |
| Total Weight With Batteries3,5 | 43.6 lbs. |
| Heaviest Piece When Disassembled3 | N/A |
| Standard Seating | Material: Black, Foam Dimensions: 17" x 17" |
| Maximum Seat Size | 17" x 17" |
| Per Charge Range | Up to 9.3 miles |
| Drivetrain | 24v/250W Brushless motors |
| Standard Electronics | 35A Brushless Micon |
| HCPCS Codes | Non-coded: K0899 |
| Braking System | Regenerative and electromechanical |
| Battery Weight4 | 4 lbs. |
| Battery Charger | Off-board, 2-amp lithium-ion |
| Weight of Heaviest Piece | NA unit folds and doesn't disassemble |
| Warranty | Frame: Lifetime limited; Drivetrain: 1-year limited; Electronics: 1year limited; Batteries: 1-year limited |
| Notes: 1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition. This specification can be subject to a variance of (+ or -) 10%. 2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%. 4 Battery weight may vary based on battery manufacturer. 5 Includes standard seat weight. | |
| All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. | |
Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® Carbon and its lithium ion battery are permitted. | |
