Initial Price is for the 2' Suitcase Ramp
Ramp Sizes in 2ft, 3ft, 4ft, 5ft, 6ft, 7ft and 8ft (SEE REFERENCE GUIDE BELOW)
Made of Lightweight Aluminum Non-Coroding
Slip-Resistant Tread
Portable or can be use as a Permanant Fixture

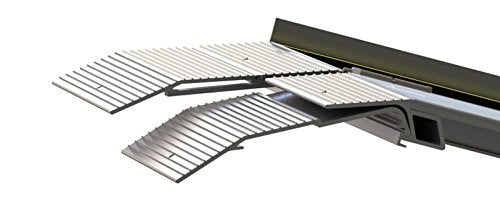

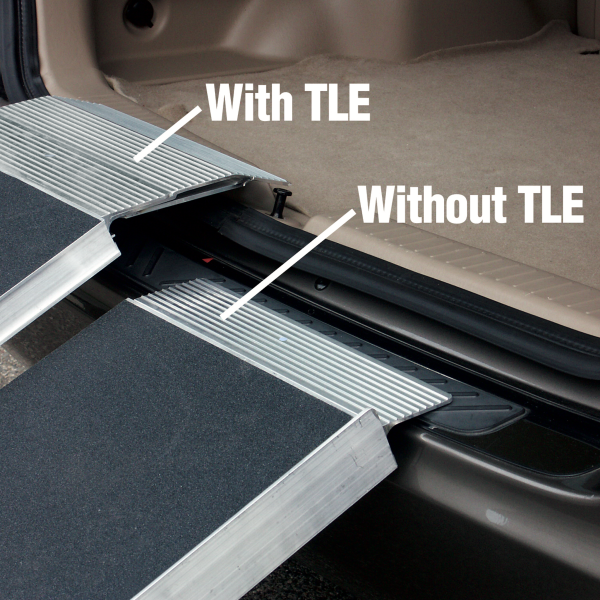

Lip Extenders Available for Loading and Unloading

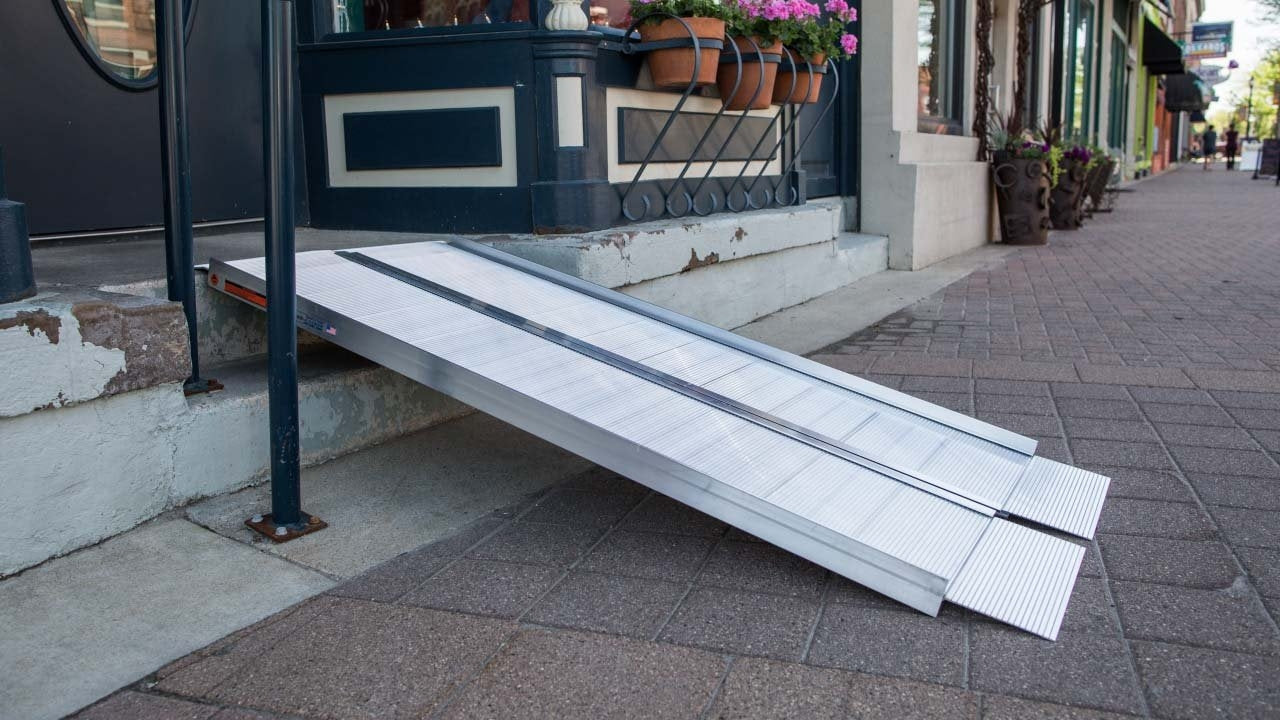

The SUITCASE® Singlefold Ramp is designed for people who need immediate access, no matter where they are. Made of lightweight aluminum with an easy-to-carry design, the SUITCASE Singlefold Ramp is fitted with ergonomically-designed handles and a non-protruding hinge that allows you to carry it anywhere. The ramp is available in 2’ to 8’ lengths and features an extruded slip-resistant tread. Browse through the tabs below to learn More about the SUITCASE Singlefold Ramp.
|
Measuring Reference |
Choose this length ramp: |
||
|
If your Rise (vertical height) is this high: |
ADA requirement for Self-propelled wheelchair |
Ramp for walking or using a wheelchair with help |
Ramp for using a Scooter or Power Wheelchair |
|
6 inches |
6 feet long |
3 feet long |
2 feet long |
|
10 inches |
10 feet long |
5 feet long |
4 feet long |
|
14 inches |
14 feet long |
7 feet long |
5 feet long |
|
18 inches |
18 feet long |
9 feet long |
6 feet long |
|
22 inches |
22 feet long |
11 feet long |
8 feet long |
FDA Class II Medical Devices designed by Golden Technologies are intended to assist persons with physical disablements.
The SUITCASE Singlefold Ramp is made of aluminum and most commonly used for wheelchairs and Scooters. Explore our specifications and usage guidelines to see how well the SUITCASE Singlefold Ramp will work for you.
|
SPECIFICATIONS
|
SUITCASE SF02
|
SUITCASE SF03
|
SUITCASE SF04
|
SUITCASE SF05
|
SUITCASE SF06
|
SUITCASE SF07
|
SUITCASE SF08
|
|
Made of Aluminum
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
|
Slip-resistant Surface
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
|
Built-in carrying handle
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
|
Usable Size
|
2’ x 30’’
|
3’ x 30’’
|
4’ x 30’’
|
5’ x30’’
|
6’ x 30’’
|
7’ x 30’’
|
8’ x30’’
|
|
Folding Size (in) (L x W x H)
|
24 x 15 x 4
|
36 x 15 x 4
|
48 x 15 x 4
|
60 x 15 x 4
|
72 x 15 x 4
|
84 x 15 x 4
|
96 x 15 x 4
|
|
Weight (lbs*)
|
11
|
17
|
23
|
29
|
34
|
41
|
47
|
|
Weight capacity (lbs)
|
800
|
800
|
800
|
800
|
800
|
800
|
800
|
|
For Wheelchairs & Scooters
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
|
Usage Guidelines**
|
Curbs
1 Step
|
Curbs
1 Step
|
Curbs
1-2 Steps
|
Curbs
1-2 Steps
Some Vans
|
1-3 Steps
Some Vans
SUVs
|
1-3 Steps
Some Vans
SUVs
|
2-3 Steps
Some Vans
SUVs
|
